Duplo DP-S550 User Manual

99
z Exterior
chap.3

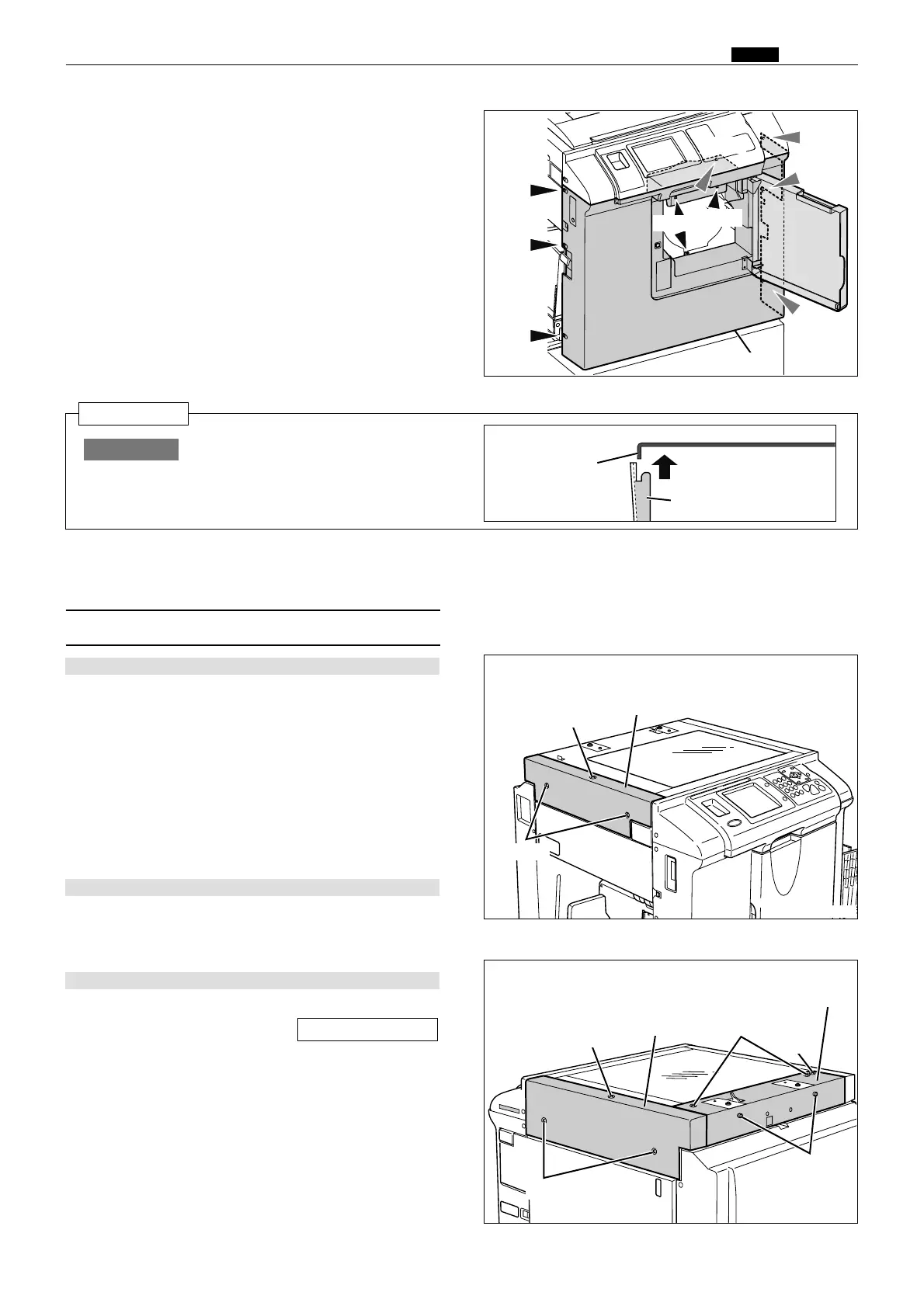

(3) Removal of Scanner Outer Cover
¡ Remove the Side cover L
1. Remove the 3 screws indicated, then remove
the side cover L.
¡ Remove the Side cover R
1. Remove the 3 screws indicated, then remove
the side cover R.
¡ Remove the Scanner rear cover
1. Remove the document cover.
2. Remove the 5 screws.
3. Press the scanner switch to slide the scanner
unit.
4. Remove the scanner rear cover.
\See page 98
5. Remove the 10 screws indicated, then remove the
front cover.
R8S03005
Side cover L
R8S03006
Side cover R
Screws
Screw
Screws
R8S03004
Screw
Screw
Screw
Front cover
Screw
Screw
Screw
Screw
Screw
Screw
Frame
R8S03004a
Front cover rib
Screws
Screws
Scanner
rear cover
Attach the front cover rib to the frame
and then fix the front cover with the
screws.
IMPORTANT :
Reinstallation
Screw
Screw
