Duplo DP-S550 User Manual

122
n Paper Ejection Section
chap.3
4. Take out the paper stripper finger and sub paper
stripper fingers from the pipe.
Adjust the paper stripper finger
after it is installed.
IMPORTANT :
n Paper Ejection Section

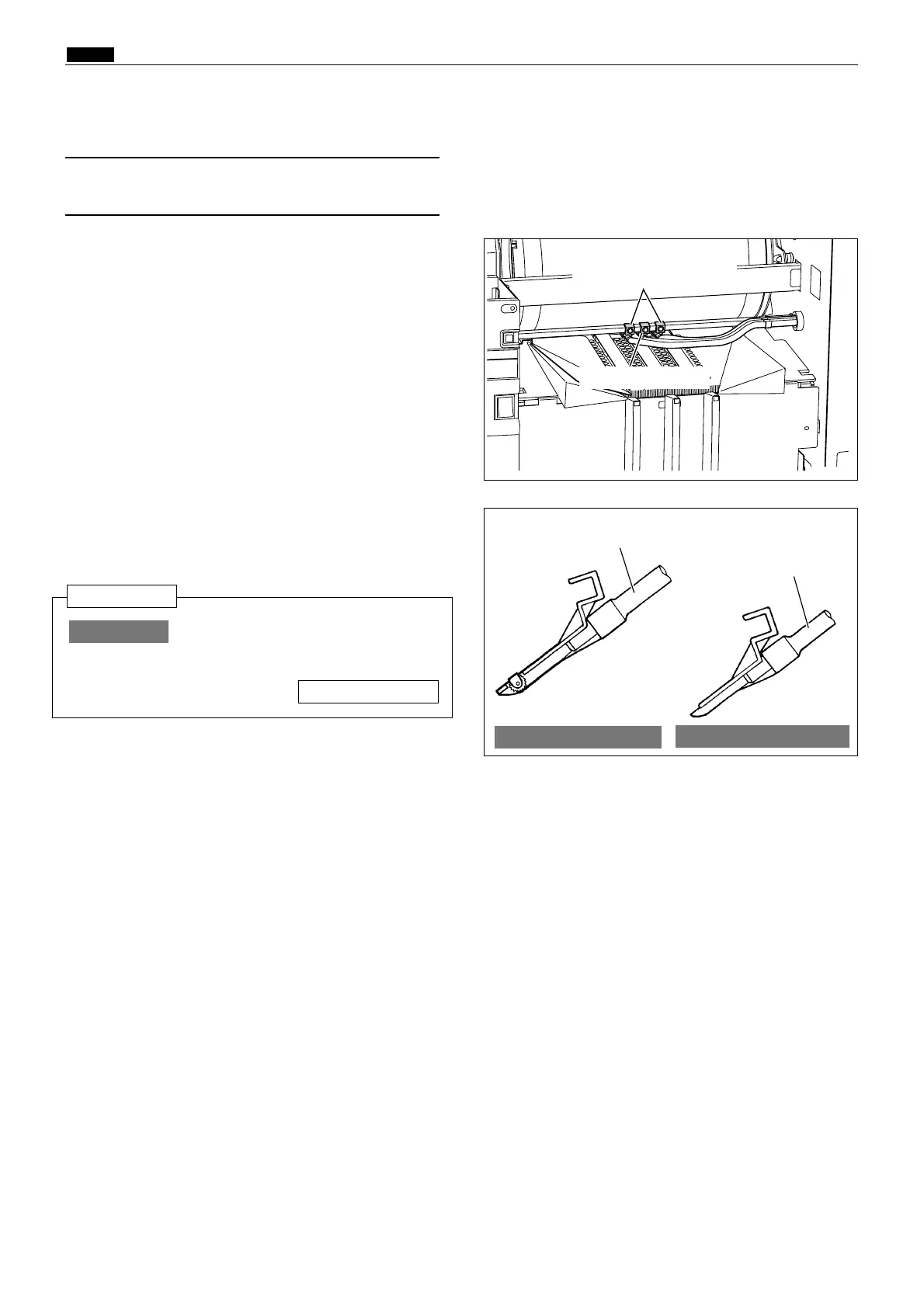

(1) Removal of Paper Stripper Finger /
Sub Paper Stripper Finger
1. Open the master ejection box.
2. Remove the set screws.
3. Remove the paper stripper finger and sub paper
stripper fingers from the shaft.
Paper stripper finger
Sub paper stripper finger
Pipe
Pipe
Reinstallation
\See page 154
Paper stripper finger
Sub paper stripper fingers
R8S03070
