Paper Ejection Section
chap.2
n
Paper Ejection Section

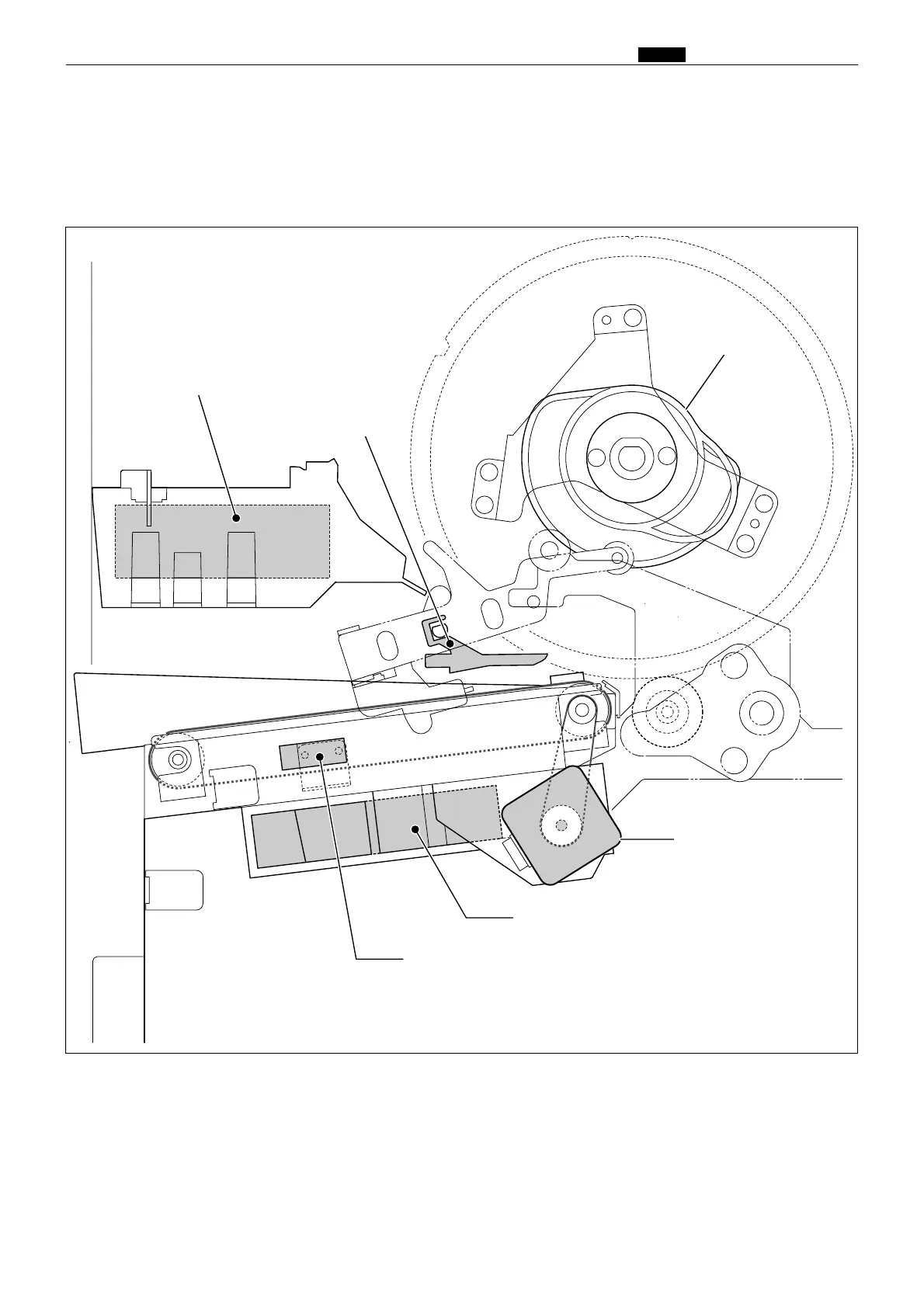

1. Description
In the paper ejection section the printed paper is removed from the drum and is ejected to the print tray
.
Escape cam
Paper stripper finger
Paper eject stepping motor
T
op fan
R8S02070
Paper eject fan
Paper eject jam sensor
79
