Duplo DP-S550 User Manual

283

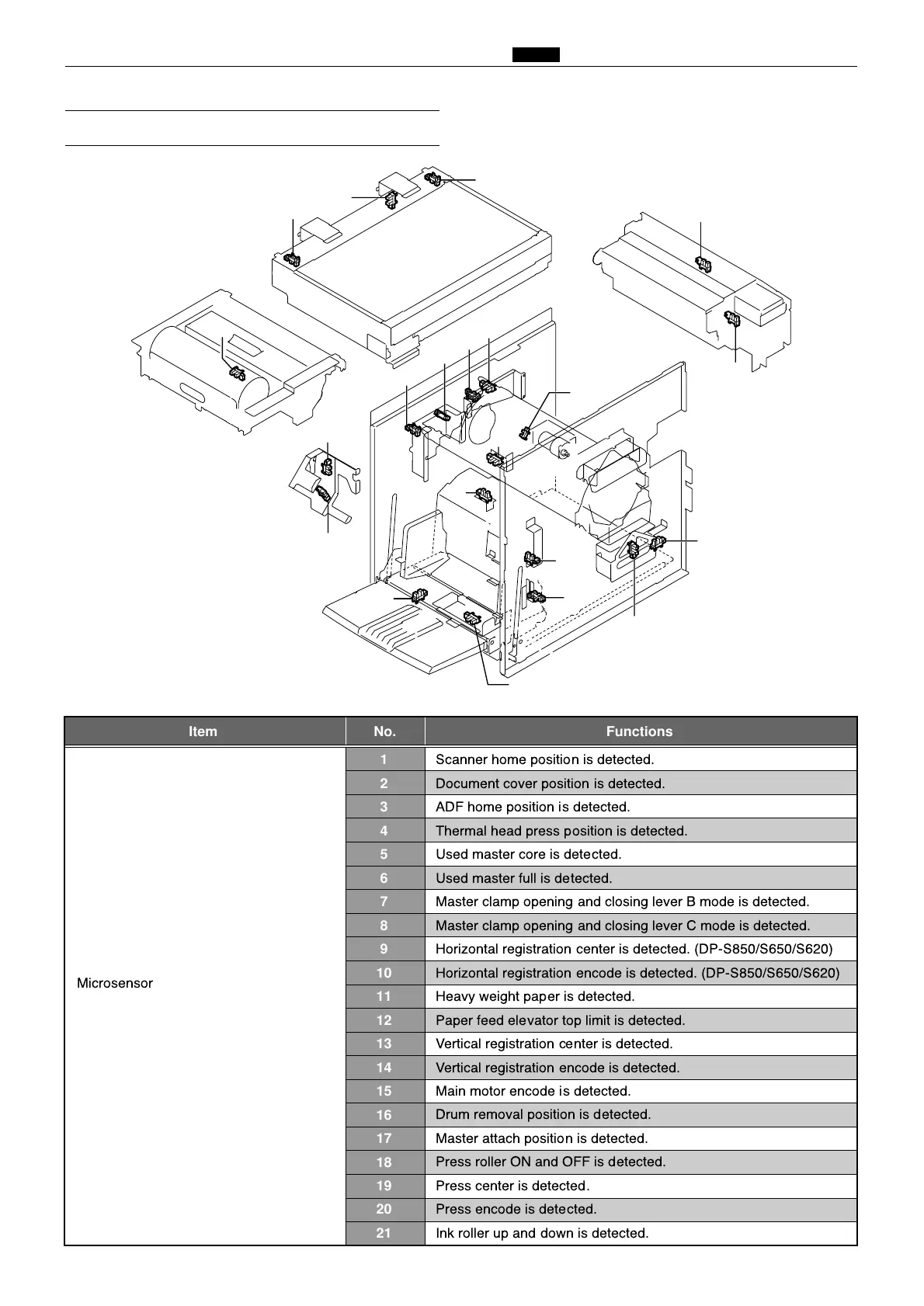

z Electrical Parts Layout and Their Functions
chap.8
20
11
12
5
14
13
7
8
19
17
16
3
2
1
10
9
18
21
6
4
15
(2) Sensors 1
R8S09002
Scanner home position is detected.
Document cover position is detected.
ADF home position is detected.
Thermal head press position is detected.
Used master core is detected.
Used master full is detected.
Master clamp opening and closing lever B mode is detected.
Master clamp opening and closing lever C mode is detected.
Horizontal registration center is detected. (DP-S850/S650/S620)
Horizontal registration encode is detected. (DP-S850/S650/S620)
Heavy weight paper is detected.
Paper feed elevator top limit is detected.
Vertical registration center is detected.
Vertical registration encode is detected.
Main motor encode is detected.
Drum removal position is detected.
Master attach position is detected.
Press roller ON and OFF is detected.
Press center is detected.
Press encode is detected.
Ink roller up and down is detected.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
FunctionsItem
Microsensor
No.
