Timing
If the master eject jam sensor is not actuated during the first platemaking, it is judged as a master ejection
error.
49
x Platemaking / Master Feed / Ejection Section
chap.2
2. Rotation Control of the Eject (Roll-up) Motor
If the eject motor is kept rotating when the master tip end is pulled to the ejection box in the plate
detachment process, the drum is actuated by the master and the stop position slips. To prevent this, the
eject motor is stopped when the master is detected by the master eject jam sensor. (If the master is not
detected by the master eject jam sensor, the eject motor is stopped by the timer.)
(1) Master Ejection Sensor
Description
The used master core sensor detects that the
master ejection core is set in the ejection box.
The master ejection sensor becomes "Photopassing
\ Photointerrupting" and detects that the ejection
box is full.
Mechanically actuated, the master eject jam sensor
detects if the master is drawn into the ejection box.
The sensor status is checked in HELP - 009.
1. Master Ejection Error Detection
Operation
When a master ejection error is detected, Then the following displays and operations are performed:
2"MASTER EJECTION ERROR" is displayed on the LCD panel and printing is not processed.
2"MASTER EJECTION ERROR" is cleared with the (RESET) key , (STOP) key pressed.
2A master ejection error is not detected for one platemaking soon after a plate ejection error or master
setting error is detected.
¡If incorrect sensing occurs due to sensor malfunction, etc., HELP-061 can be used to
prohibit plate ejection error sensing.
IMPORTANT :
3. Function of Parts
HELP-061 \ see p.268
HELP-009 \ see p.216

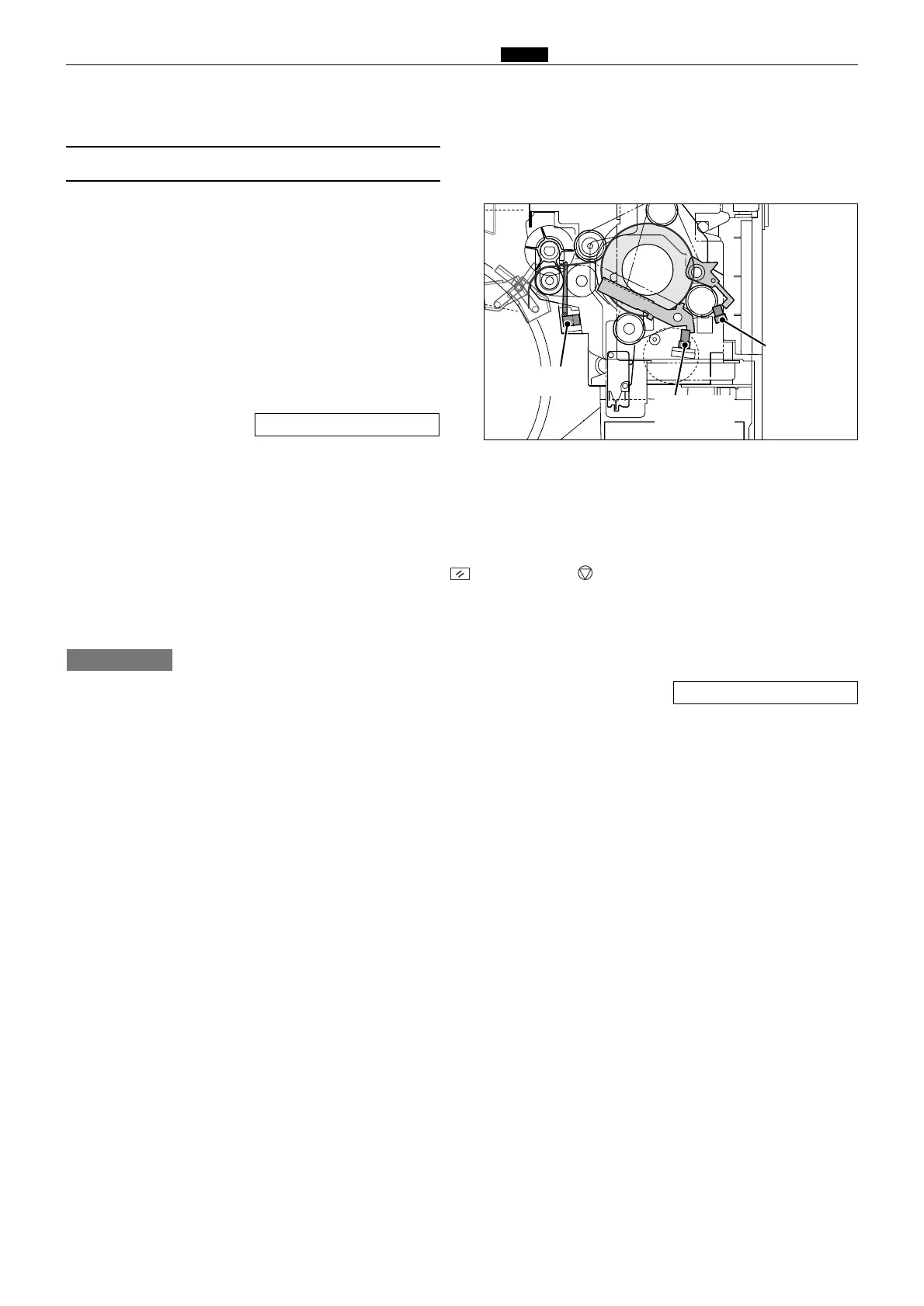

R8S02029
Master eject
jam sensor
Used master
full sensor
Used master
core sensor
To Next Page
