35
z Scanner Section
chap.2
Operation
When the
scanner unit
is closed, the switch is pressed; OPEN. When the
scanner unit
is open, the actuator is
released; the micro switch is turned to CLOSE.
Description

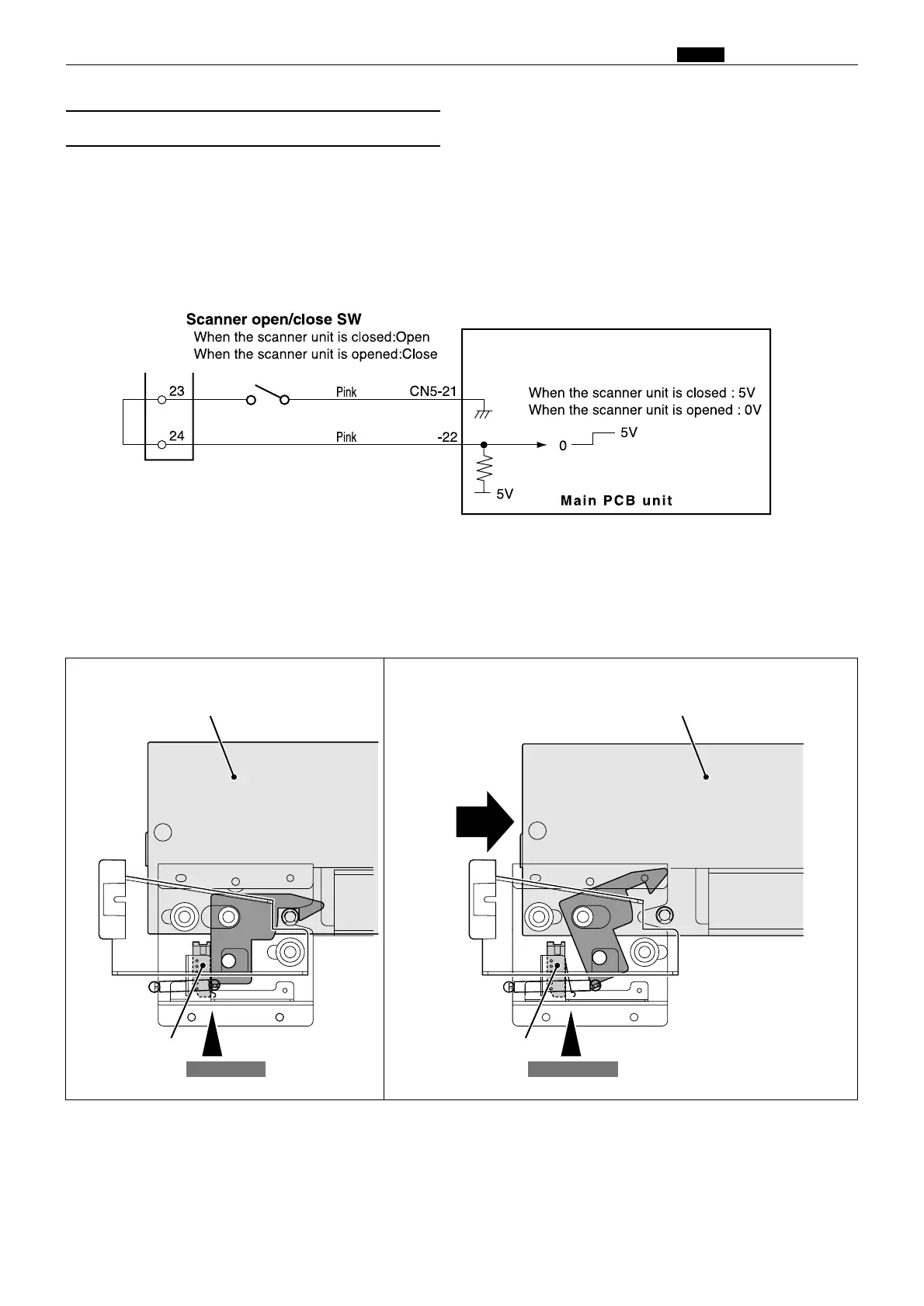

Opening and closing of scanner unit cover is detected by scanner unit cover open / close detection SW (MS3).
This machine does not work (except for the drum removal button and the JOG switch) unless the scanner unit
is closed firmly. The machine stops immediately when the scanner unit is open.
• When the scanner unit begins to open or close •When the scanner unit is closed
Circuit
(5) Scanner Unit Open / Close Detection
R8S02E06e
R8S02012
Scanner unitScanner unit
Switch ON
Scanner open /
close switch
Scanner open /
close switch
Switch OFF
To Next Page
