84
n

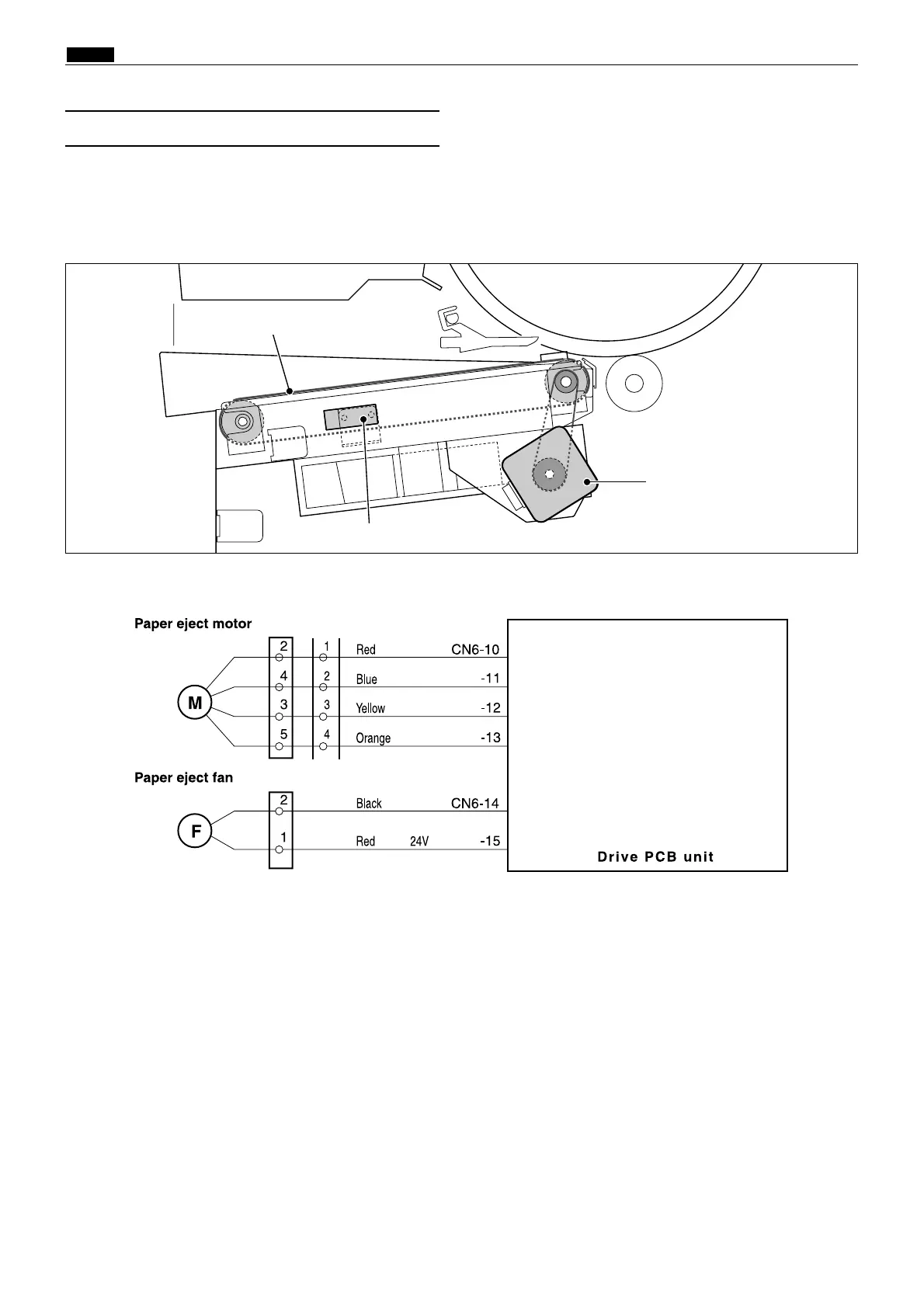

Paper Ejection Section
chap.2
Description
The paper ejection belt takes the paper stripped off the drum by the paper stripper finger to the print tray
.
The belt is driven by the paper eject motor
. Pulses are controlled for stepping.
(4) Paper Ejection Belt
Circuit
Paper eject jam sensor
Paper eject motor
Paper ejection belt
R8S02076
R8S02E29e
84
86
