x Platemaking / Master Feed / Ejection Section
chap.4
R8S04009
R8S04010

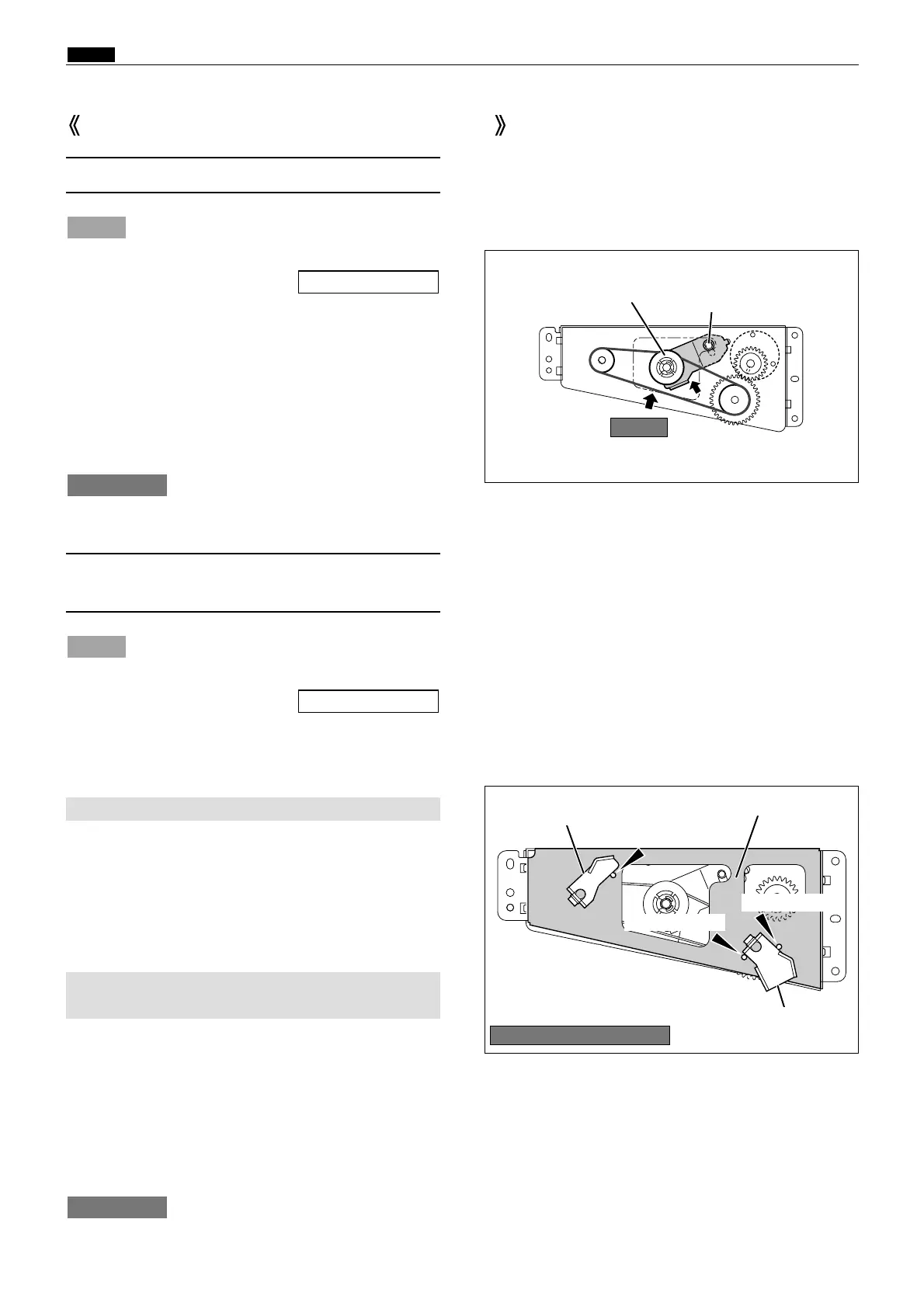

Adjustment procedure
1. Loosen the tension set screw.
2. Use the set screw to adjust the belt's tension to
about 1kg.
After Adjustment
Be sure to adjust the B/C mode
after installation to the printer.
IMPORTANT :
When tensioning the timing belt, ensure that the
bracket is positioned so that the upper surface of
the master clamp opening/closing lever is aligned
(to within 0.5mm) with the rim of the positioning
hole.
When tensioning the timing belt, ensure that the
bracket is positioned so that the upper surface (2
places) of the master clamp opening/closing lever is
aligned (to within 0.5mm) with the rim of the posi-
tioning hole.
Tension
Screws
Position hole
Master ejection master
clamp opening/closing lever
Positioning hole
Master feed master clamp
opening/closing lever
Master Clamp Opening/Closing Section
(1) Adjusting the Timing Belt Tension
(2) Positioning the Master Clamp
Opening / Closing Levers
¡For removal of master clamp opening / closing unit.
\See page 114
NOTE :
After Adjustment
Be sure to adjust the B/C mode
after installation to the printer.
IMPORTANT :
¡For removal of master clamp opening / closing unit.
\See page 114
NOTE :
1kg
1. Master feed master clamp opening/closing lever
2. Master ejection master clamp opening/closing
lever
Aligned (to within 0.5mm)
Bracket
Positioning hole
To Next Page
