Duplo DP-S550 - Operation When the Master Set; Sequence of Operation

37
x Platemaking / Master Feed / Ejection Section
chap.2
2. Sequence of Operation

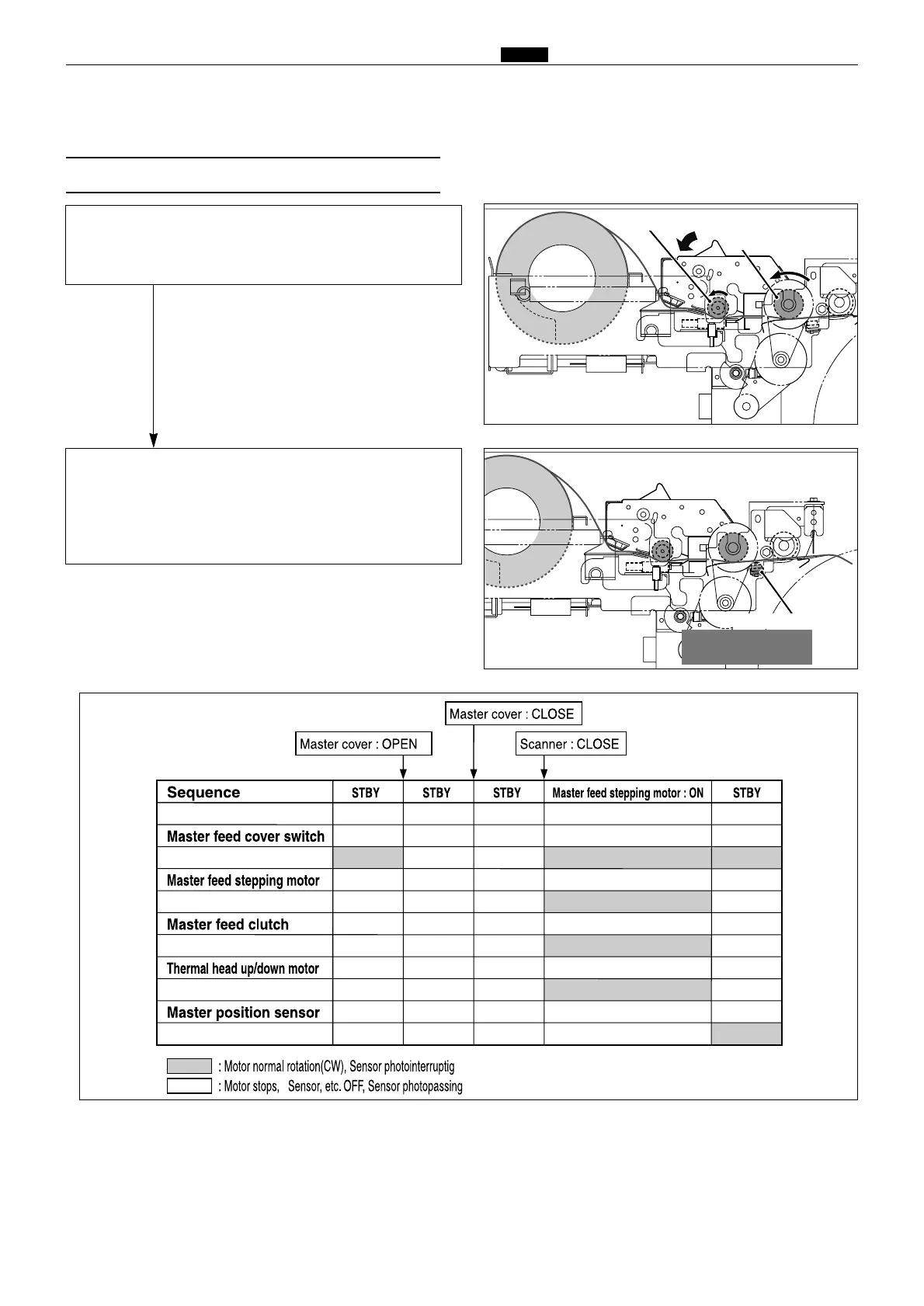

(1) Operation when the master set
Platen roller
Master top sensor
Photo passing
//
Photo interrupting
R8S02015
R8S02016
When the scanner and the master cover are closed,
the platen roller and sponge roller1 rotate and feed
out the master for 4 seconds.
When the Master top sensor is interrupted, the
master is fed a few steps and stopped.
If the master lead edge does not reach the master
top sensor, "MASTER SET ERROR" is displayed.
R8S02G05e
¡
Sequence
Sponge roller 1
