131
m Drum Section
chap.3
Reinstallation

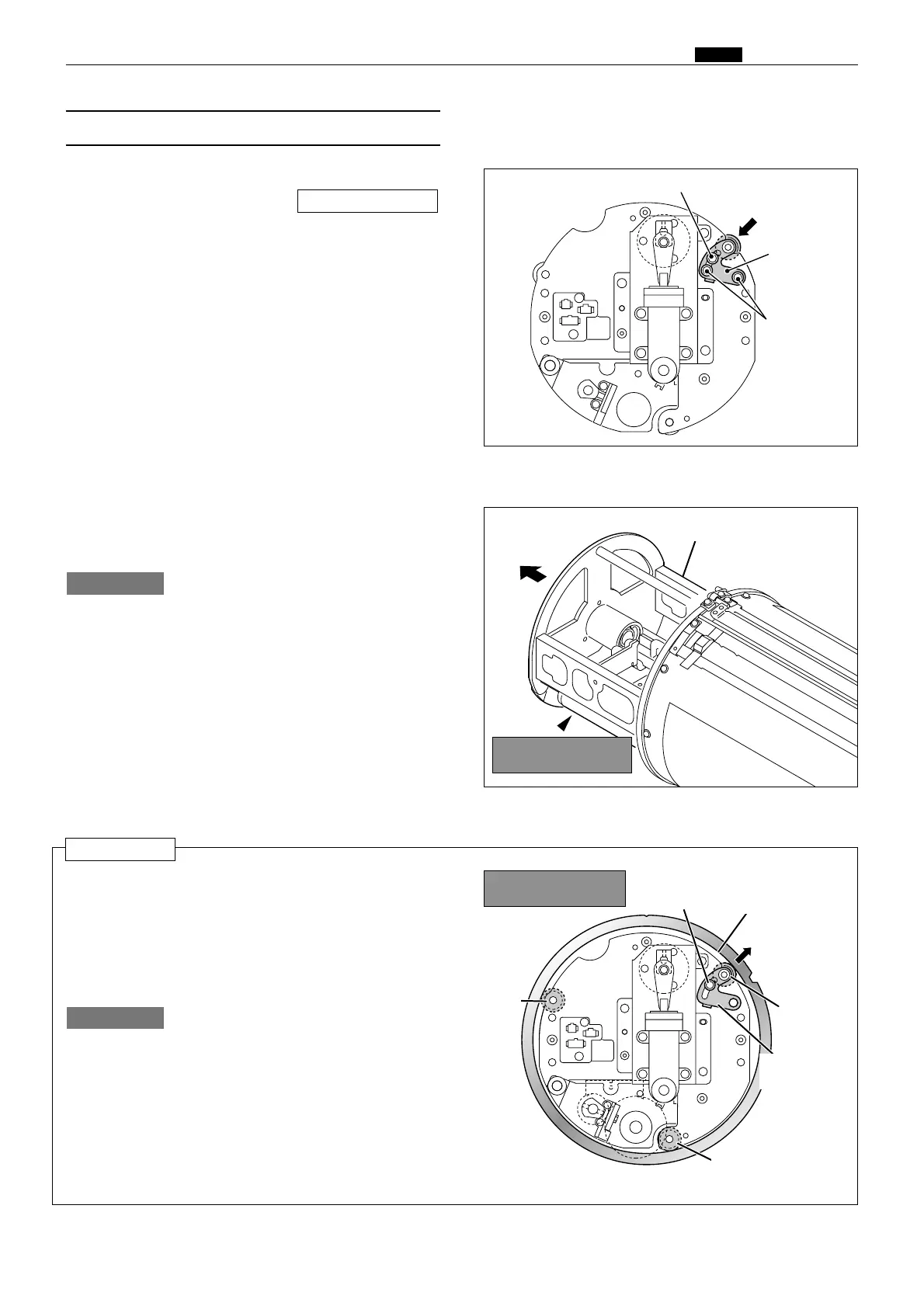

(6) Removal of Inner Frame
1. Remove the outer frame (right) unit.
\See page 129
3. Pull out the inner frame (section inside the
drum) in the direction of an arrow.
When pulling out the unit, be careful
not to damage the inner surface of
the drum.
IMPORTANT :
2. Loosen 3 set screws on the supporting plate,
move the supporting plate in the direction of
arrow until it stops and fix it with the screw.
Slide the supporting plate in the direction of arrow
1 so that the supporting plate roller, roller unit and
roller are in contact with the inner surface of the
flange right and tighten the roller with the screw,
pressing the roller to the inner surface lightly.
Be sure to place the flange between
the rollers.
IMPORTANT :
Place the flange
between the rollers.
R8S03097
R8S03095
R8S03096
Be careful not to
scratch or damage.
Inner frame
Screw
Supporting
plate
Roller
Screw
Roller
Roller
Supporting
plate
Inner surface
Screws
To Next Page
