148
c Paper Feed Section
chap.4

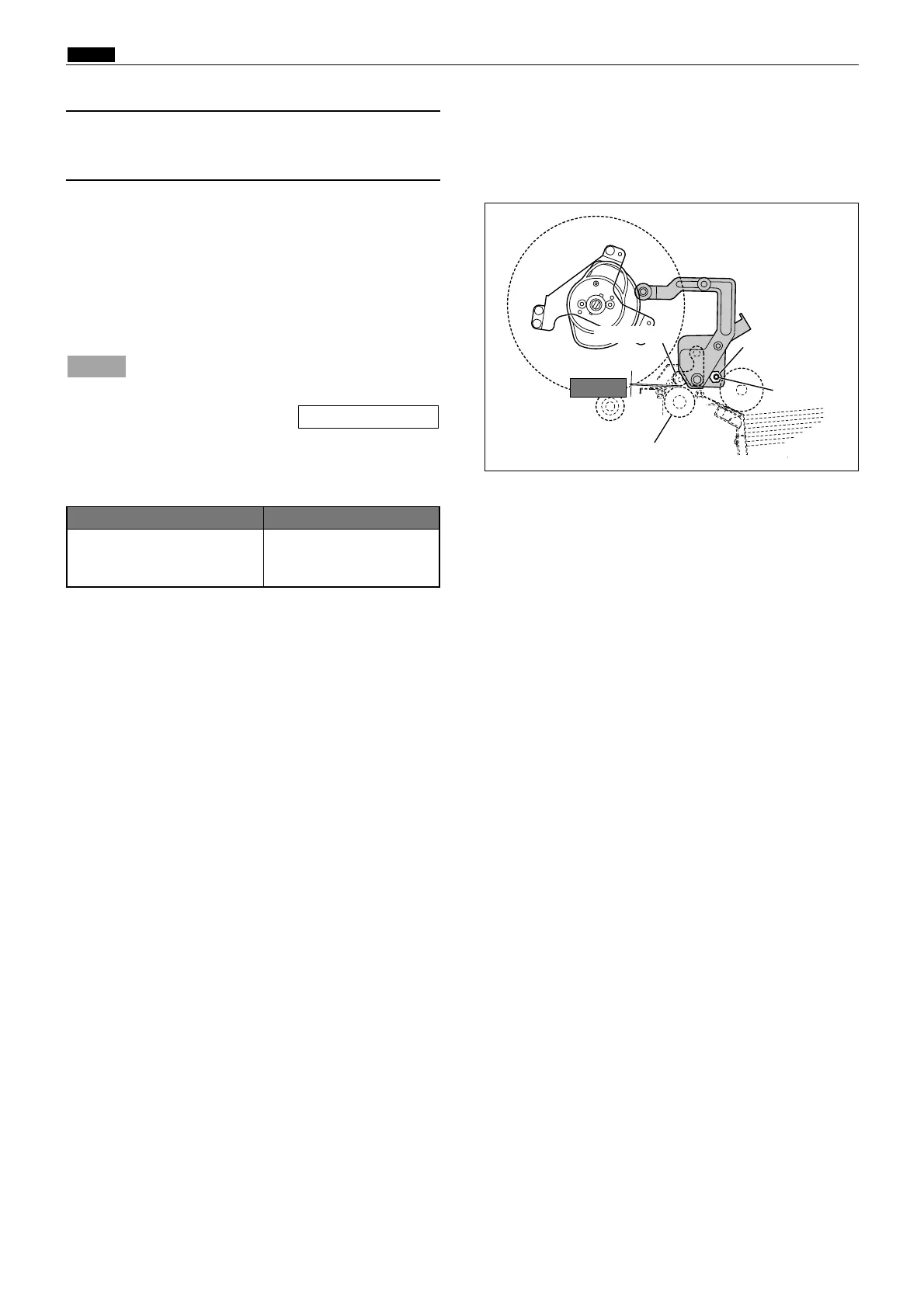

(5) Adjusting the G Roll Escape Amount /
Timing
Adjustment procedure
1. Pull out the drum while the drum is in the stop
position.
2. Loosen the eccentric shaft fixing screw and
adjust so that the clearance between the timing
roller and the guide roller becomes 0.5 mm.
¡For description of operation.
\See page 60
NOTE :
Standard valueItem
Clearance between timing roller
and guide roller
0.5 mm
R8S04023
Eccentric shaft
Timing roller
Guide roller
Standard value
0.5mm
Fixing screw
To Next Page
