Platemaking/Master Feed and Ejection Section
chap.3
(2)

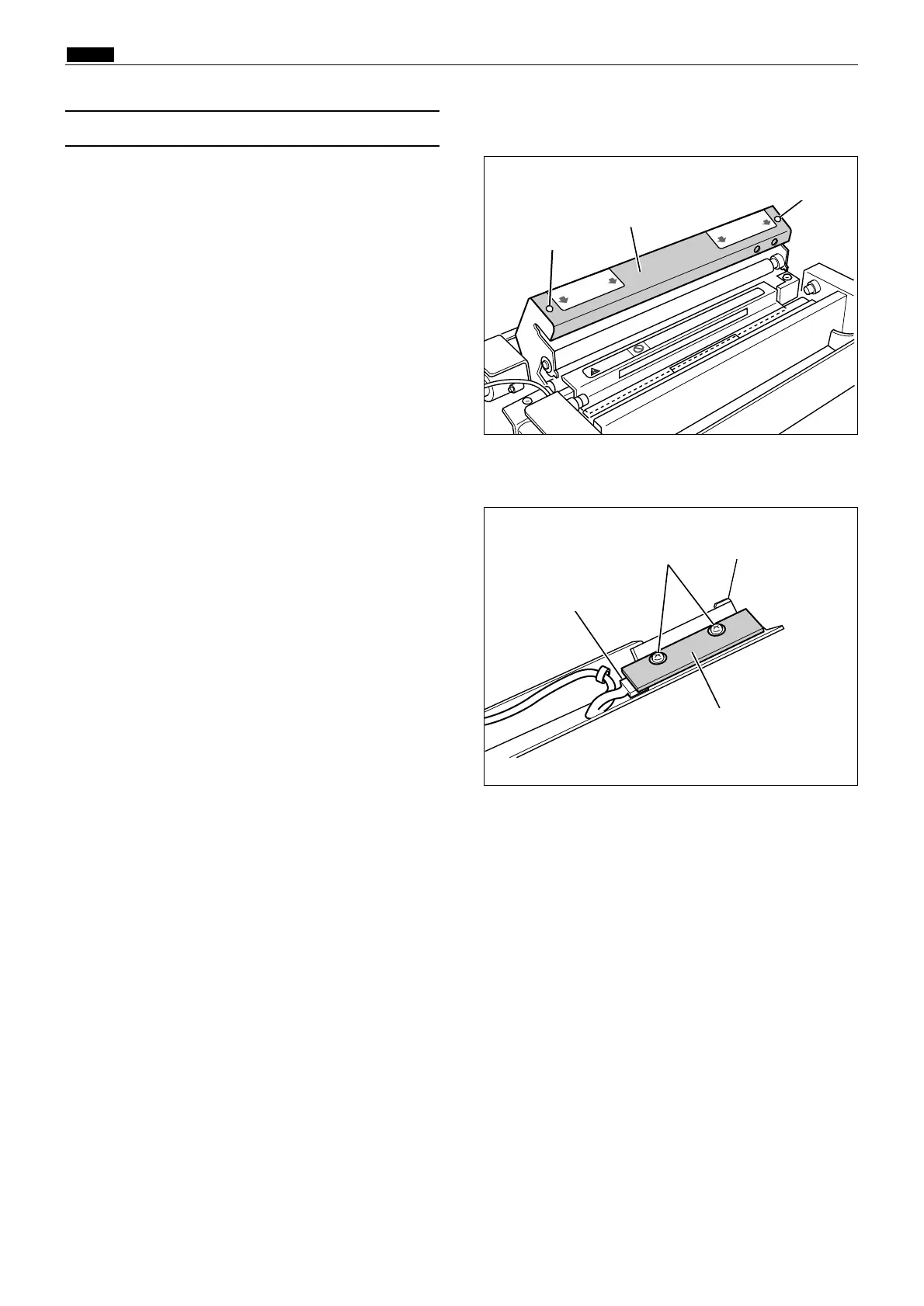

Removal of End Mark Sensor PCB Unit
1.
Open the scanner
, and take out the master roll.
2.
Open the master cover
.
3.
Remove the 2 screws, and remove the cover
.
4.
Remove the 2 screws.
5.
Disconnect the connector indicated, and the end
mark sensor PCB unit.
CLOSE
CLOSE
R8S03035
R8S03036
Screw
Cover
Screws
Connector
Cover
End mark sensor PCB unit
