Drum Driving Section
chap.2

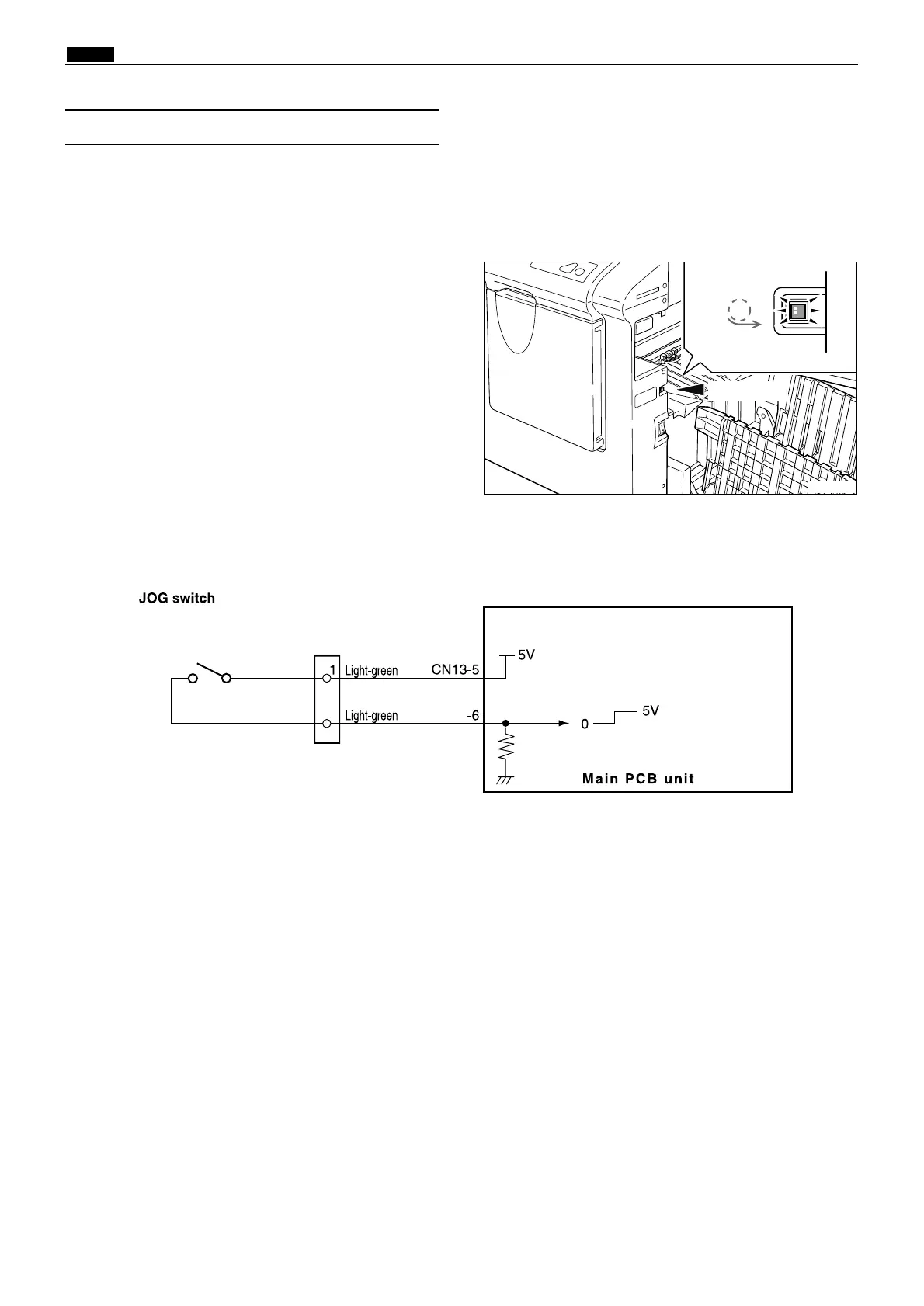

(4) JOG Switch
Circuit
JOG switch
R8S02057
R8S02E23e
Description
While holding down the JOG switch, the drum rotates. When releasing the button, the drum stops rotating.
The drum stop position is not detected. When removing the drum, press the drum removal button.
LED : light up
