n Paper Ejection Section
chap.2
Description
The paper eject jam sensor is installed on the paper eject fan unit and detects whether the paper is ejected
normally. When it is detected that the paper is not ejected normally, "PAPER JAM ON EJECTION SIDE" is
displayed on the LCD panel.
Operation
The paper eject jam sensor is installed in the paper eject fan unit. LOW with the optical path interrupted.
HIGH with the optical path passing.
Circuit

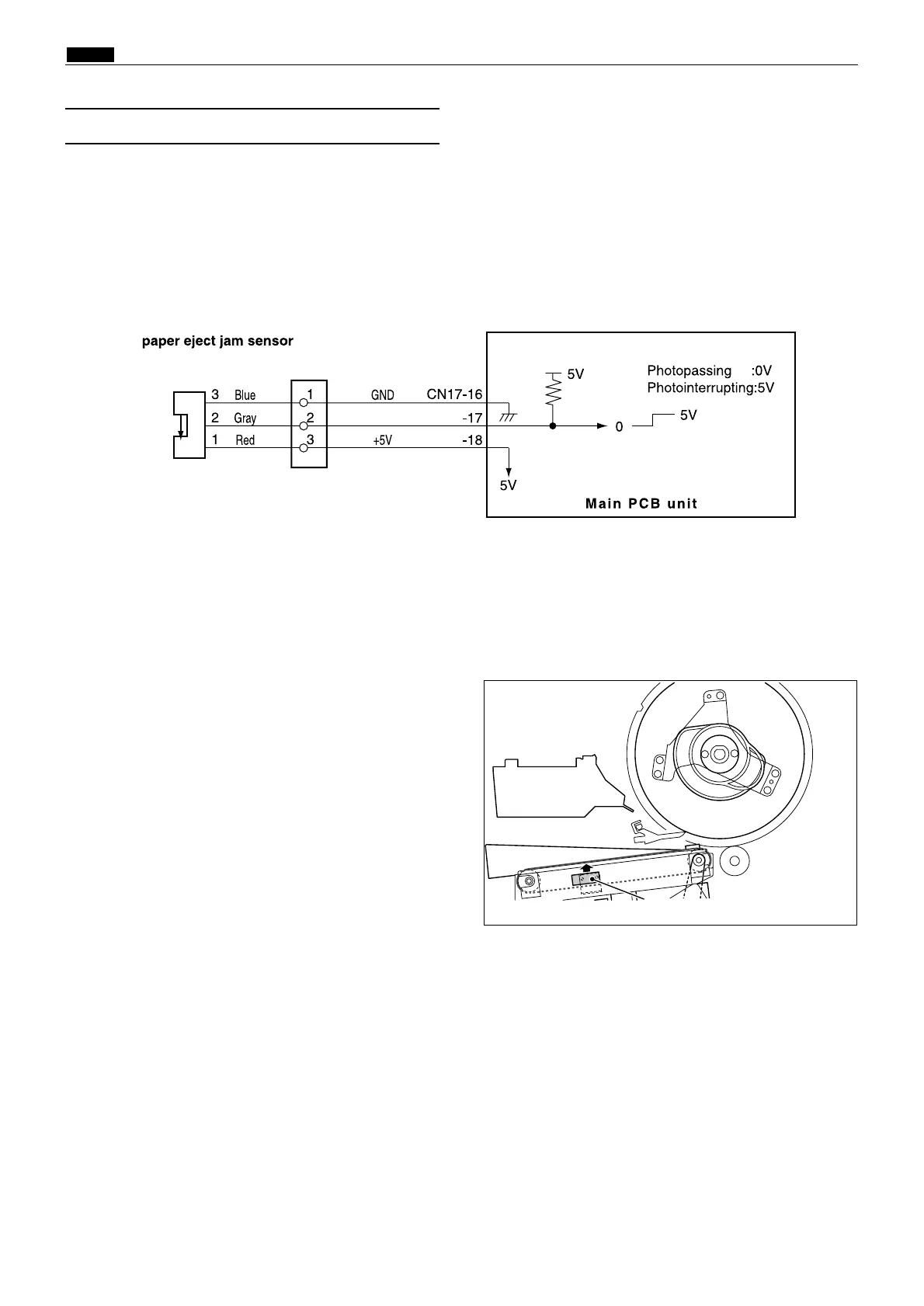

(3) Paper Eject JAM Sensor
R8S02E28e
R8S02074
Paper eject jam sensor
