Duplo DP-S550 - Motors;Fans

285
z Electrical Parts Layout and Their Functions
chap.8
17
10
9
13
12
14
16
16
7
2
8
3
6
5
4
1
15
11
Scanner stepping motor
Master feed stepping motor
Thermal head up/doun motor
Cutter motor
Master eject stepping motor
Master clamp motor
Horizontal registration motor (DP-S850/S650/S620)
Paper feed tray elevator motor
Paper feed stepping motor
Vertical registration motor
Main motor
Press motor
Paper ejection belt motor
Ink pump motor
Ink roller up/doun motor
Top blow fan
Paper eject fan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Motor
Fan motor
FunctionsItem No.

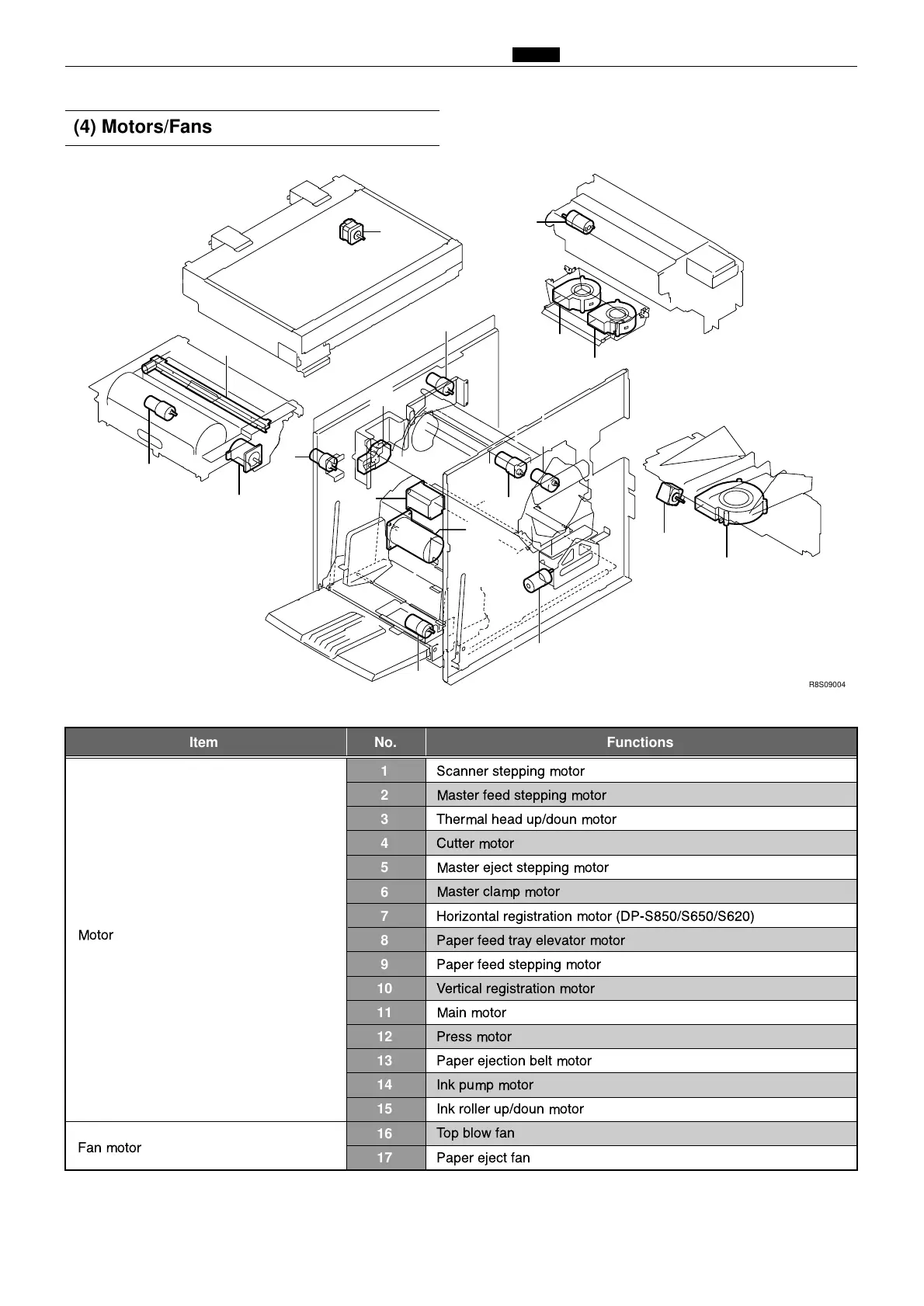

(4) Motors/Fans
R8S09004
