51
x Platemaking / Master Feed / Ejection Section
chap.2

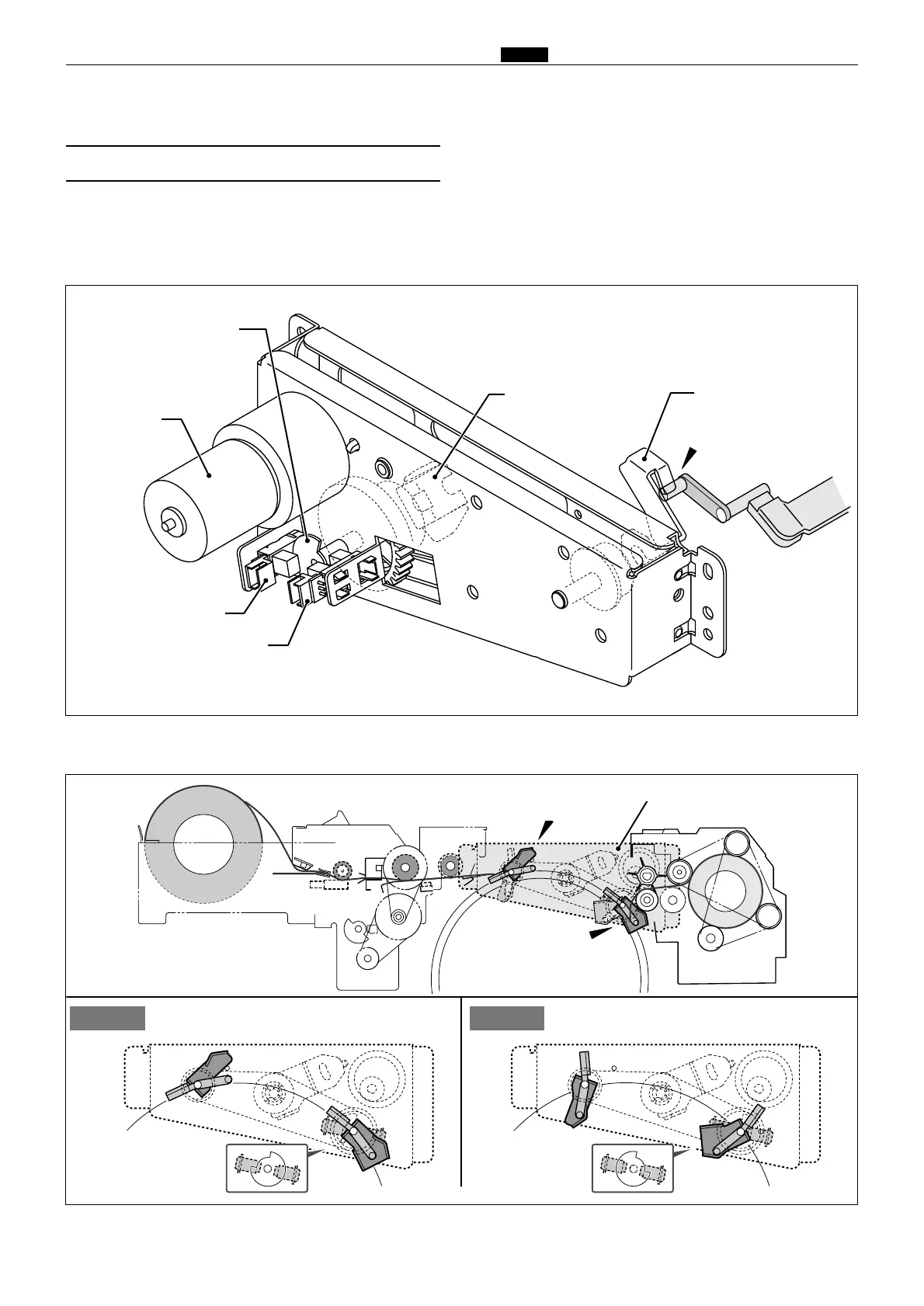

The following is the structure of the master clamp opening / closing section viewed with the rear cover opened.
The rotation stop position of the master clamp opening / closing lever is determined by the clamp motor and
two cams. There are 2 rotation stop positions: B mode and C mode. Their functions are as follows:-
(1) Structure
2. Operation of Master Clamp Open / Close Lever
The drawing below is a section through the machine's interior, viewed from the control side.
Master clamp opening / closing section
2B mode 2C mode
Clamp motor
B/C mode adjusting cam
Master attach position
Master detach position
B mode detect sensor
C mode detect sensor
Master clamp opening /
closing lever
Master clamp
R8S02036
R8S02035
Master clamp opening /
closing lever
To Next Page
