Duplo DP-S550 User Manual

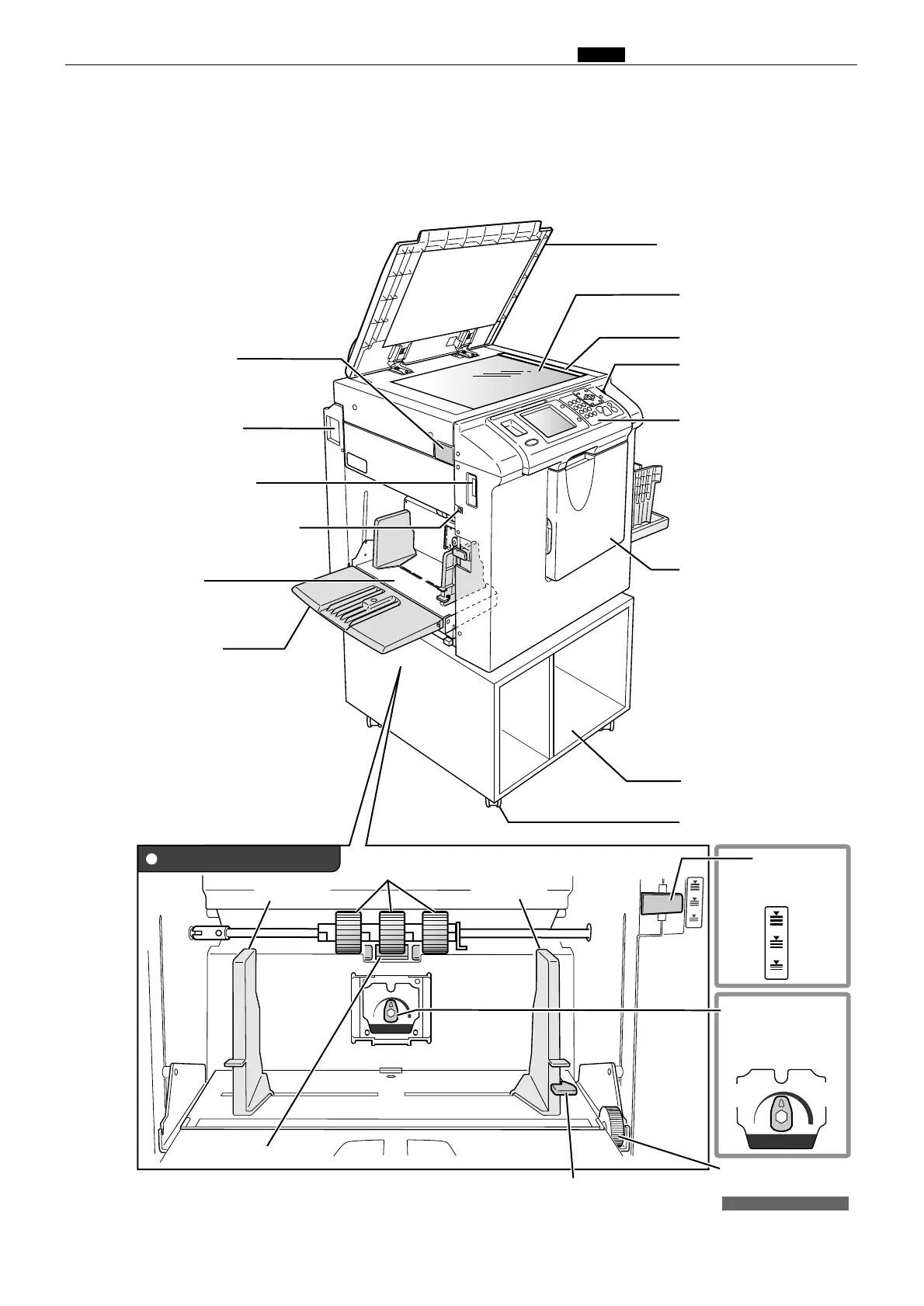

v Part Names and Their Functions
chap.1
17
Paper feed section
Model : DP-S550 / S520
Standard
LOW HIGH
Separation pressure
Side guide
Paper feed roller
Paper separator unit
Connector (PC)
LCD brightness adjust dial
Scanner switch
Feed tray descend switch
Feed tray
Feed pressure
adjuster lever
Support tray
Scanner cover
Glass
Scale
Control panel
Caster locks
Cabinet
Front cover
High
Standard
Low
Side guide lever
Separation pressure
adjuster knob
Feed tray horizontal
registration adjuster dial
CF card connector
Press to lower the feed tray.
Use to adjust paper
feed pressure.
Open this cover to replace the ink pack
and drum unit .
Keeps the document in contact
with the document glass plate.
The document is place on this glass.
Controls brightness of the LCD.
Use to adjust the separation
pressure according to
the paper thickness.
Lock/unlock the side guide.
Side guide
HIGH:
Thin
LOW:
Thick
R8S01003e
vPart Names and Their Functions
1. Machine exteriors
