Duplo DP-S550 User Manual

140
x Platemaking / Master Feed / Ejection Section
chap.4
B
A
C
B
E
D
C
F
E
D

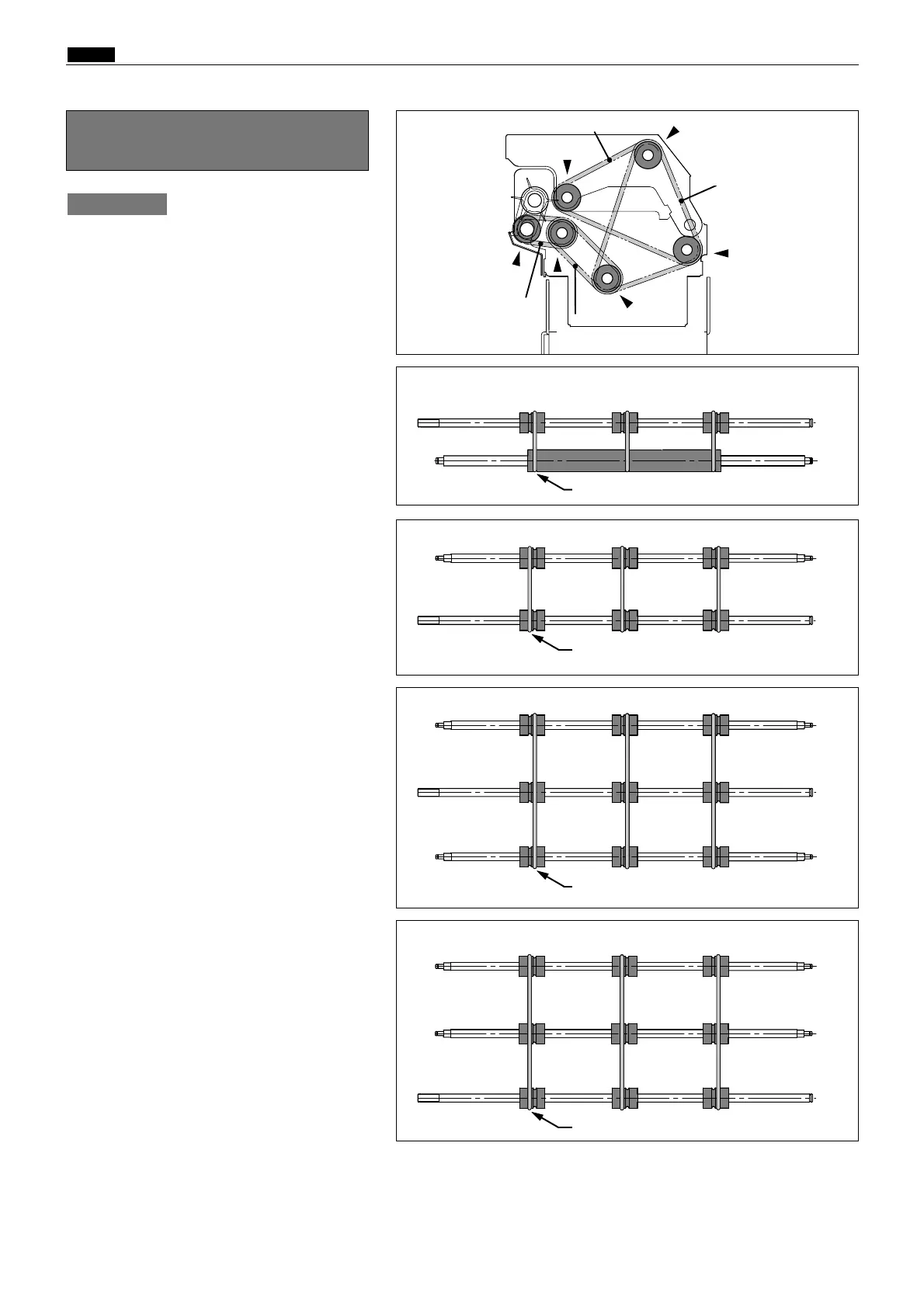

Set the hook on the spring
and crush it to prevent
removing.
IMPORTANT :
1. Attaching the spring between A and B.
3 springs : Spring T (L=90mm)
2. Attaching the spring between B and C.
3 springs : Spring T (L=104.9mm)
3. Attaching the spring between C, D and E.
3 springs : Spring T-B (L=220mm)
4. Attaching the spring between D, E and F.
3 springs : Spring T-B (L=220mm)
wSpring T L104.9mm
eSpring T (B) L220mm
rSpring T (B) L220mm
qSpring T L90mm
R8S04006
¡
Model : DP-S510
F
E
D
C
B
A
A : Rubber roller
B : Driving roller
C : Inverted roller
D : Driving roller
E : Inverted roller
F : Inverted roller
qSpring T L90mm
rSpring T (B) L220mm
wSpring T L104.9mm
eSpring T (B) L220mm
R8S04005
