Duplo DP-S550 User Manual

63
c Paper Feed Section
chap.2

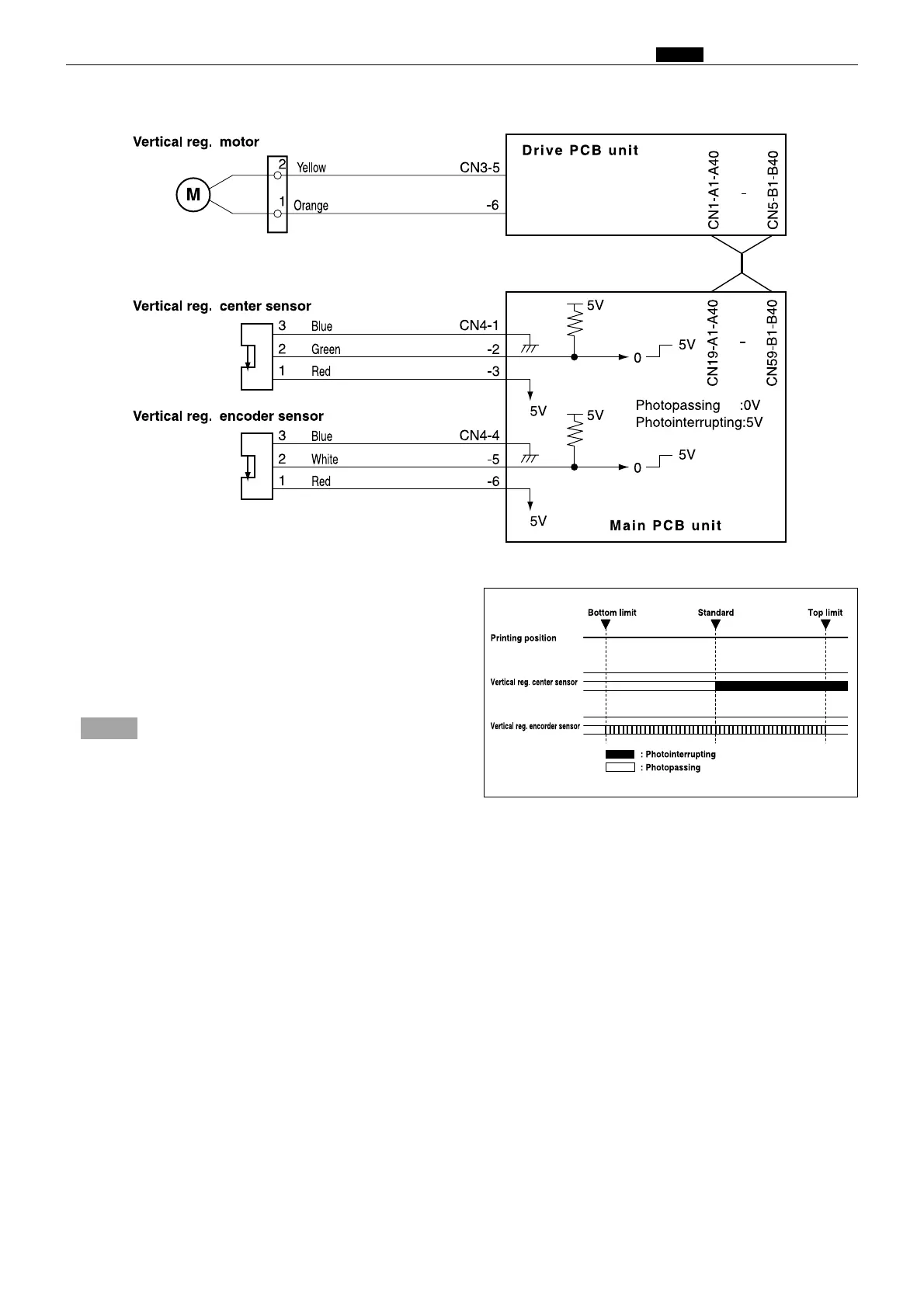

Circuit
Operation
Top and bottom limit of print position is detected by
the vertical registration encoder sensor and the
center sensor.
The center position is detected by the standard
position sensor.
Operation with the Power ON
The printing position returns to the standard
position by operating with the power ON,
depending on the sensor state as follows.
2
When positioned between the standard position
and the bottom limit:
Rotate the vertical registration motor normally (CW)
to return the printing position to the standard.
2
When positioned between the standard position
and the top limit:
Rotate the vertical registration motor reversely (CCW)
to return the printing position to the standard.
R8S02E15e
R8S02G10e
2The vertical registration encoder sensor
detects the vertical registration motor rotation.
The main PCB unit controls the number of
vertical registration motor rotations with the
vertical registration encoder sensor signal.
NOTE :
