Machine description
Operating Instructions 1767 - 00.0 - 12/2016 15
3 Machine description
3.1 Components of the machine

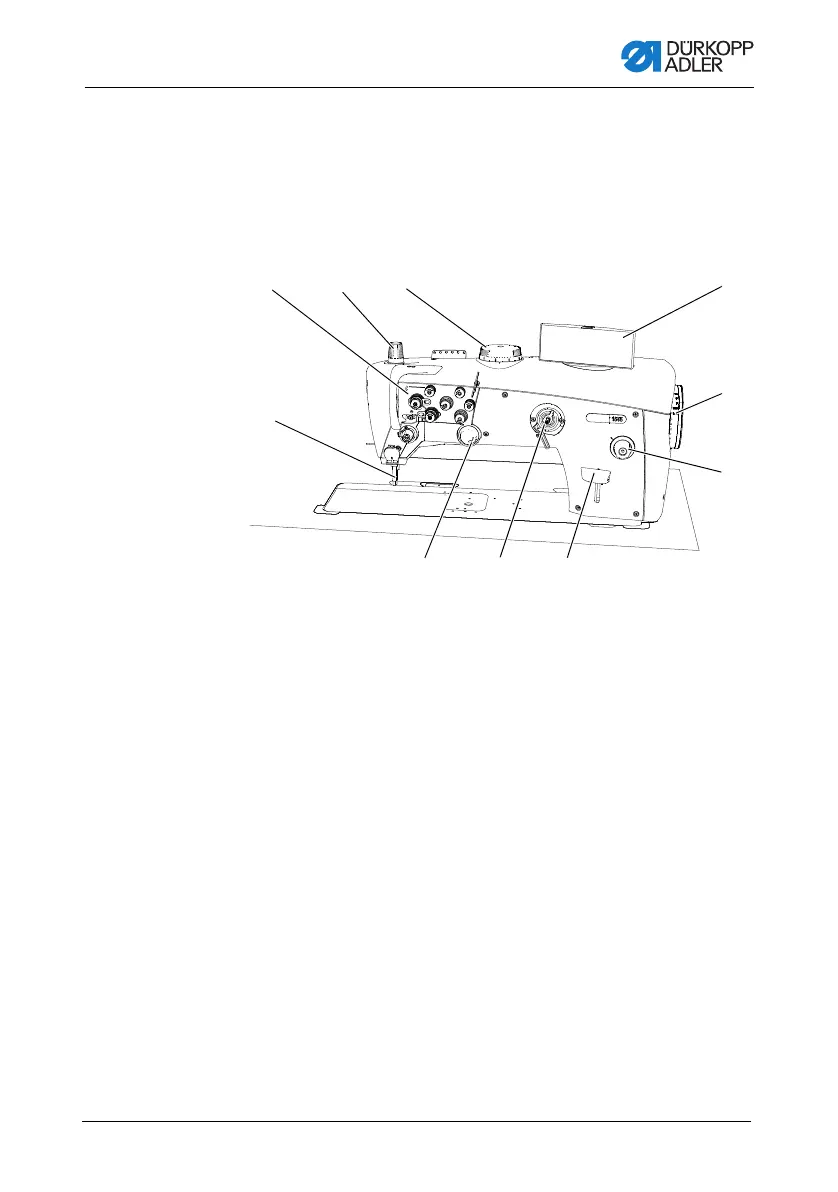

Fig. 1: Components of the machine
3.2 Proper use
The machine may only be used with sewing material that satisfies
the requirements of the specific application at hand.
The machine is intended only for use with dry sewing material.
The sewing material must not contain any hard objects.
The needle thicknesses permissible for the machine are listed in
the Technical Data ( p. 107) chapter.
The seam must be completed with a thread that satisfies the
requirements of the specific application at hand.
The machine is intended for industrial use.
(1) - Adjusting wheel for sewing
foot stroke
(2) - Adjusting wheel for sewing
foot pressure
(3) - Thread tensions
(4) - Needle bar
(5) - Electronic handwheel
(6) - Winder
(7) - Stitch adjustment lever
(8) - Stitch length adjusting wheel
(9) - Handwheel
(10)- Control panel
