Setup
Operating Instructions 1767 - 00.0 - 12/2016 85
3. Screw the bracket (6) under the tabletop so that the pedal
rod (1) runs to the pedal (4) at right-angles to the setpoint
device (5).
4. Screw the setpoint device (6) onto the bracket (5).
5. Attach the pedal rod (1) with the ball sockets to the setpoint
device (5) and to the pedal (4).
6. Pull the pedal rod (1) to the correct length.
Proper setting
10° inclination with pedal released.
7. Tighten the screw (2).

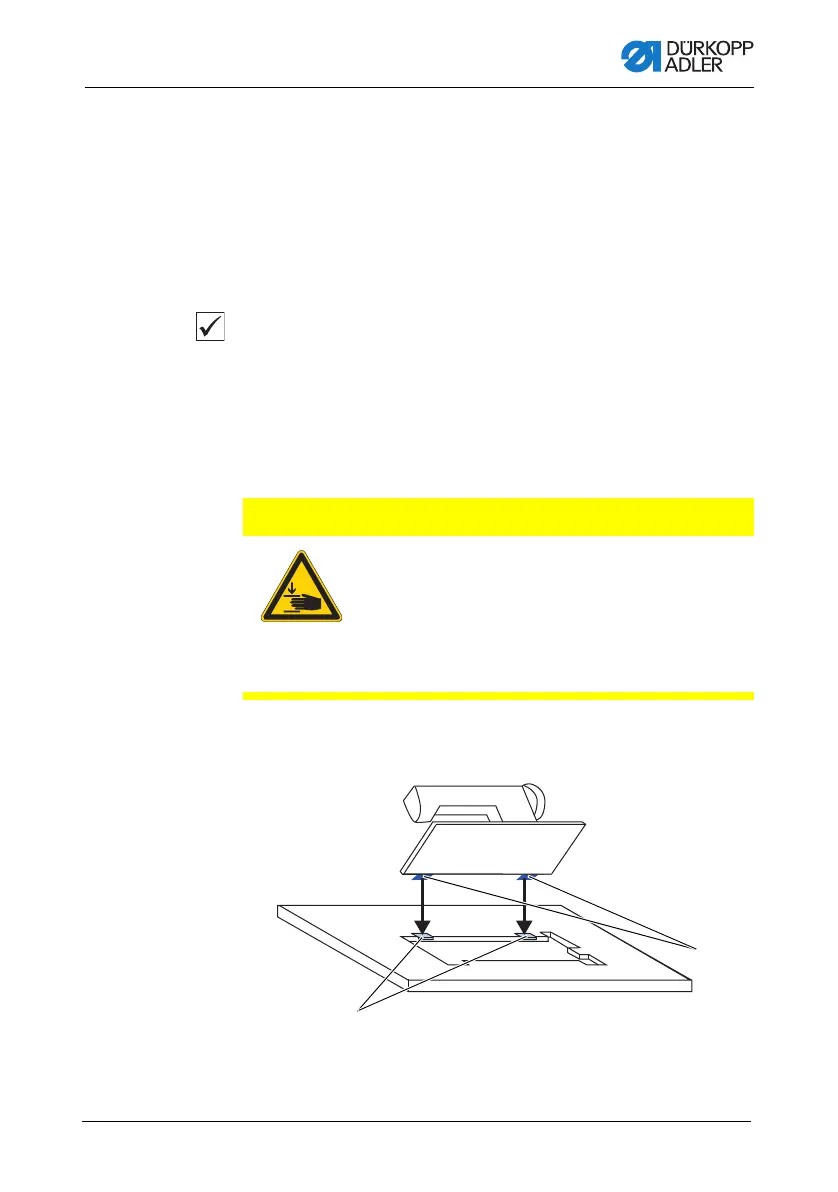

7.7 Inserting the machine head
Fig. 39: Inserting the machine head
CAUTION
Risk of injury from heavy parts!
Crushing possible.
Take care not to jam your hands when inserting
the machine head.
Exercise special caution when inserting the upper
hinge parts into the rubber inlays.
(1) - Rubber inlays (2) - Upper hinge parts
