Setup
Operating Instructions 1767 - 00.0 - 12/2016 81
7.4 Tabletop
Ensure that the tabletop has sufficient load-bearing capacity and
strength.
7.4.1 Completing the tabletop

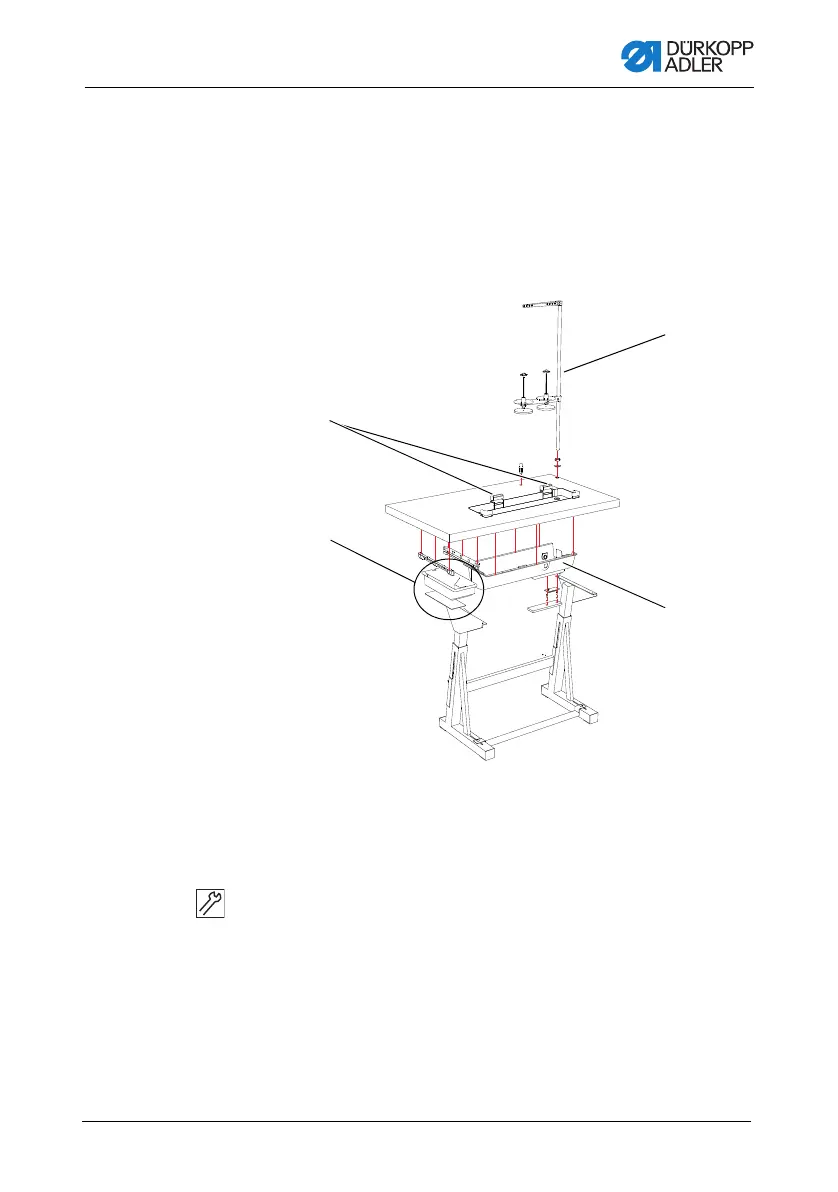

Fig. 35: Completing the tabletop
To complete the tabletop:
1. Screw the drawer (3) with the left-hand bracket to the under-
side of the tabletop.
2. Screw the oil pan (4) in place under the slot for the machine.
3. Insert the reel stand (6) into the hole.
4. Assemble the reel stand (6) with nut and washer.
(1) - Machine head support
(2) - Slots for lower hinge parts
(3) - Drawer
(4) - Oil pan
(5) - Thread reel holder
