Setup
80 Operating Instructions 1767 - 00.0 - 12/2016
7.3 Assembling the stand

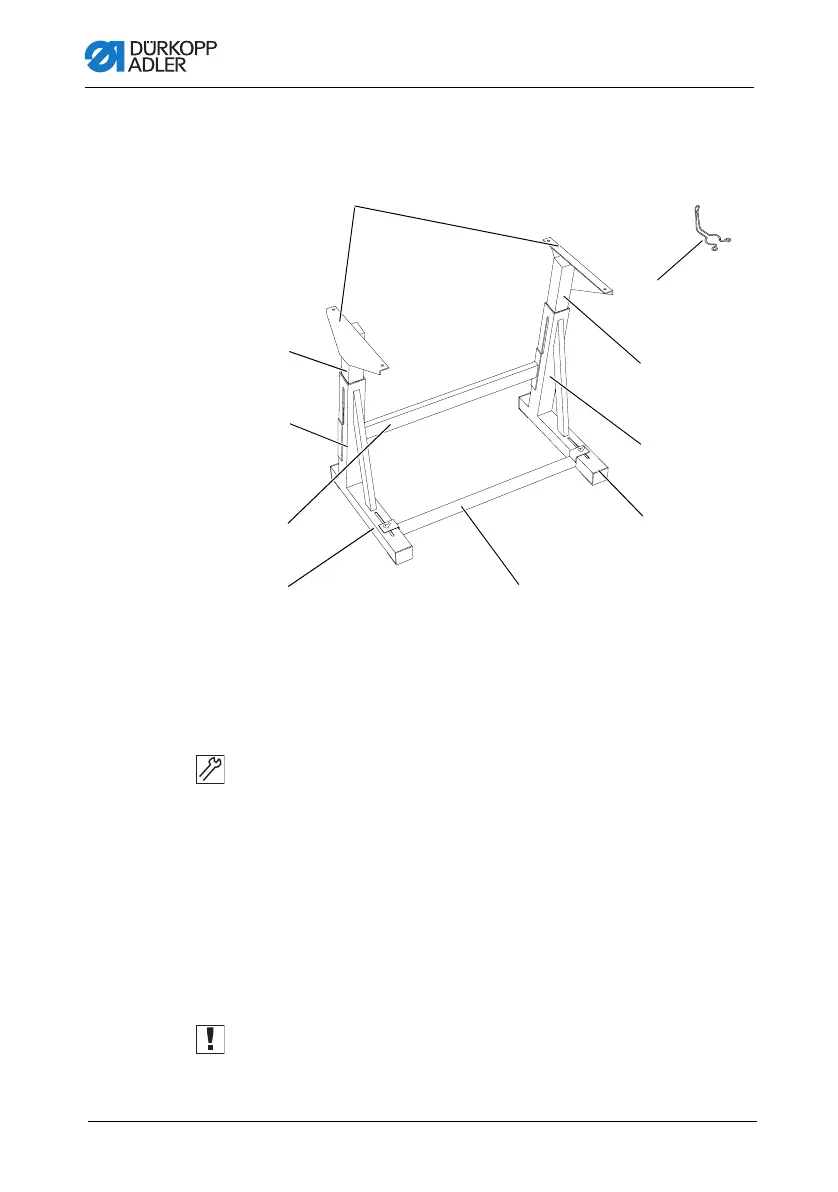

Fig. 34: Assembling the stand
To assemble the stand:
1. Screw the cross bar (4) to the stand bars (3).
2. Screw the oil can holder (8) at the rear to the cross bar (4).
3. Screw the cross strut (6) to the foot struts (5).
4. Insert the inner bars (2) in such a way that the longer end
of the head section (1) is above the longer end of the foot
struts (5).
5. Tighten the inner bars (2) down so that both head sections (1)
are at the same height.
Important
Turn the adjusting screw (7) so that the stand has even contact
with the ground.
(1) - Head sections of the inner bars
(2) - Inner bars
(3) - Stand bars
(4) - Cross bar
(5) - Foot struts of the stand
(6) - Cross strut
(7) - Adjusting screw (not shown)
(8) - Holder for oil can
