7.9 Assembling the oil extraction line

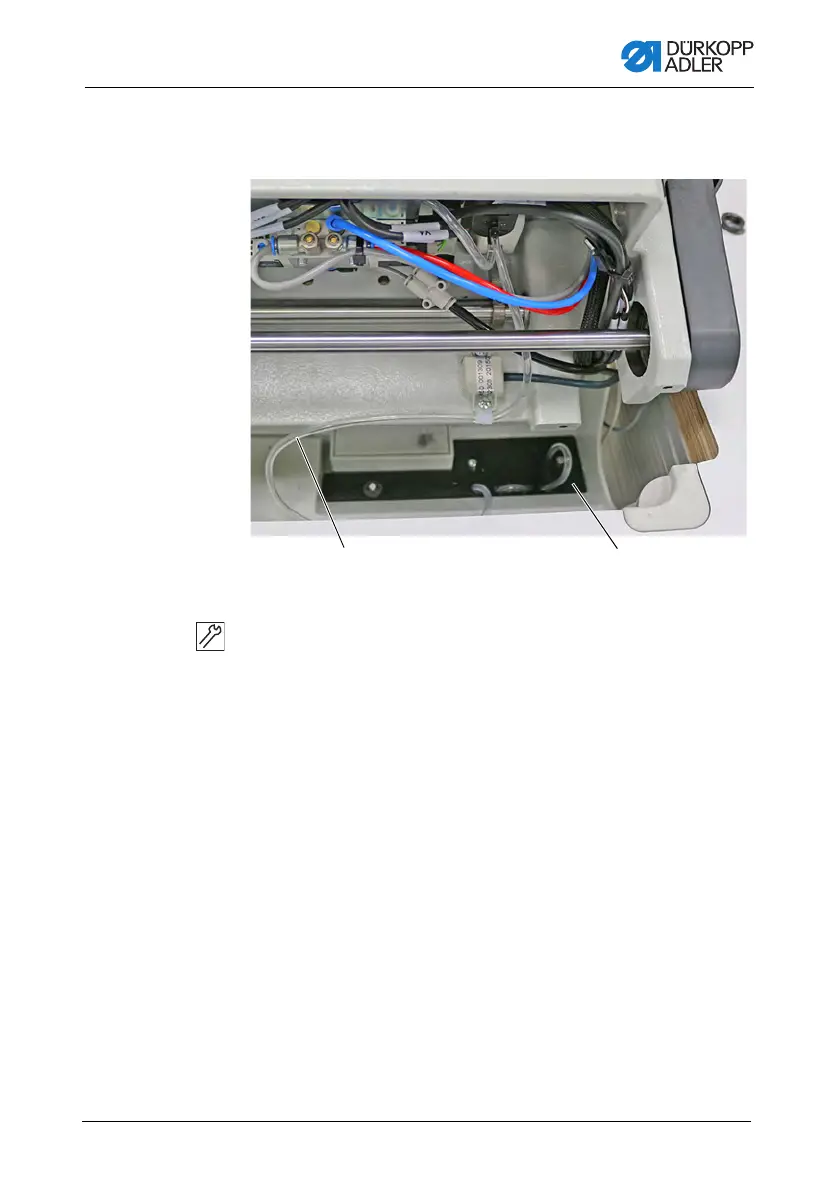

Fig. 44: Assembling the oil extraction line
To assemble the oil extraction line:
1. Tilt the machine head.
2. Screw the filter (2) into the oil pan with the plastic adapter to
the right.
3. Insert the tube (1) of the oil extraction line through the guides
and into the plastic adapter.
(1) - Hose (2) - Filter
