DURKOPP ADLER 1767 - Electrical connection; Assembling the control

Setup
88 Operating Instructions 1767 - 00.0 - 12/2016

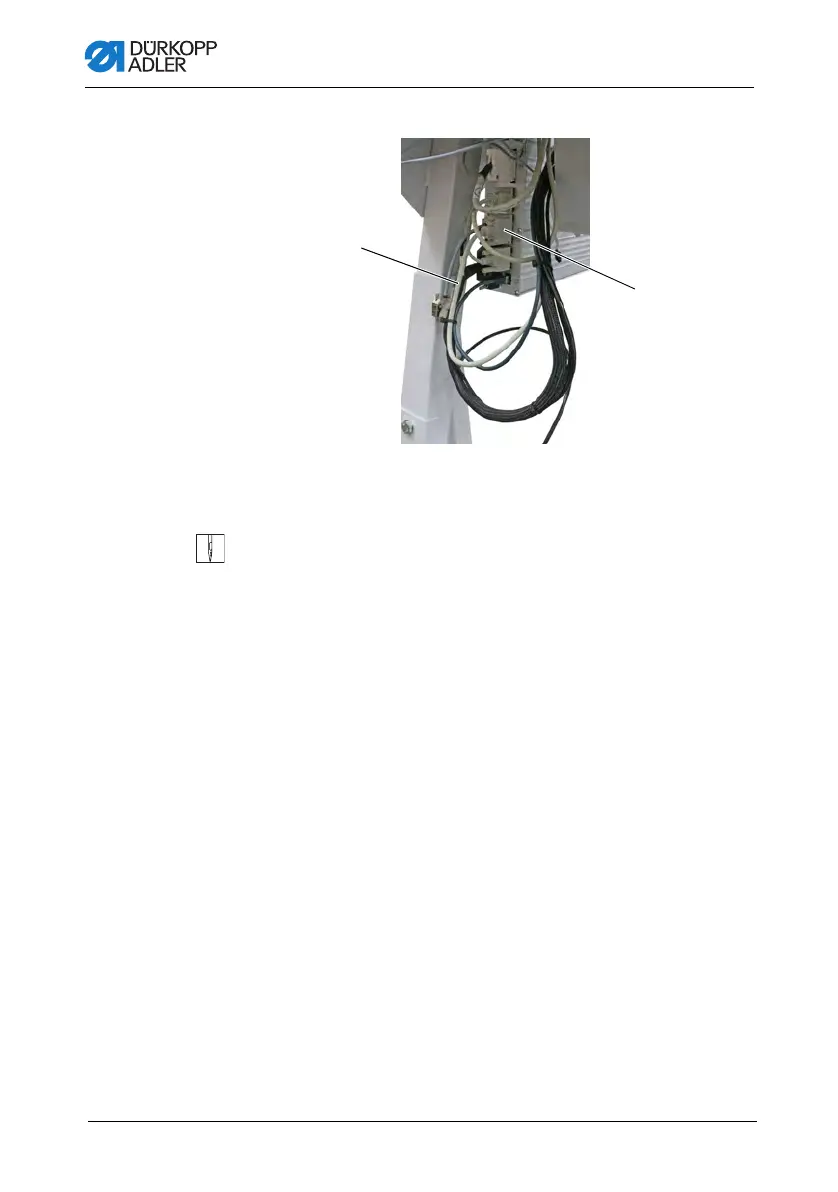

Fig. 43: Assembling the control panel (2)
9. Insert the plug (7) into the socket of the control.
10. Tighten the belt cover (2) and the arm cover (1).
(5) - Cable (7) - Plug
⑤
⑦
