Setup
Operating Instructions 1767 - 00.0 - 12/2016 87

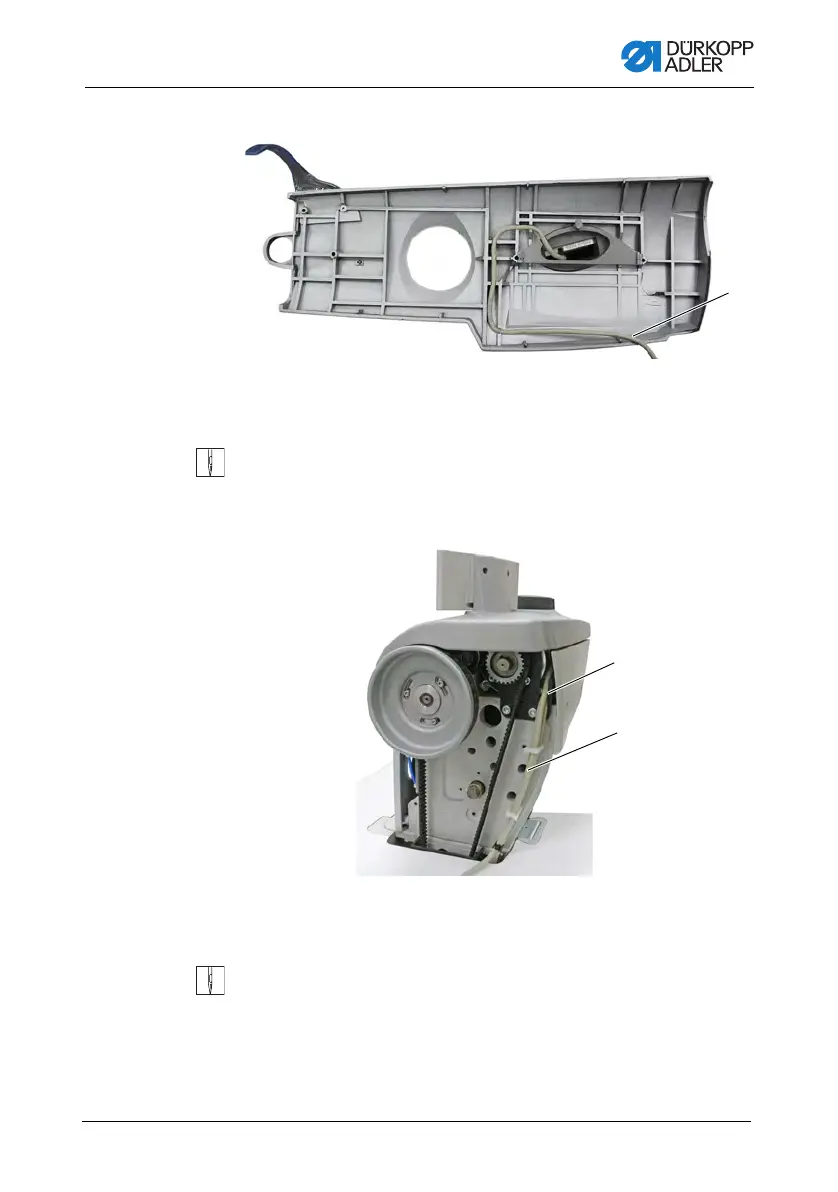

Fig. 41: Assembling the control panel (2)
4. Lay the cable (5) on the bottom side of the arm cover.
5. Place the arm cover.
Fig. 42: Assembling the control panel (3)
6. Guide the cable (5) through the cable guide (6) and fix it in
place at the other cables using cable ties.
7. Tilt the machine head.
8. Lay the plug (7) and cable (5) of the control panel past the
machine and under the tabletop.
(5) - Cable
⑤
(5) - Cable (6) - Cable guide
⑥
⑤
