Maintenance
Operating Instructions 1767 - 00.0 - 12/2016 75
6.3.2 Draining the water condensation
Water condensation accumulates in the water separator (2) of the
pressure controller.
Proper setting
Water condensation must not rise up to the level of the filter
element (1).
Check the water level in the water separator (2) on a daily basis.

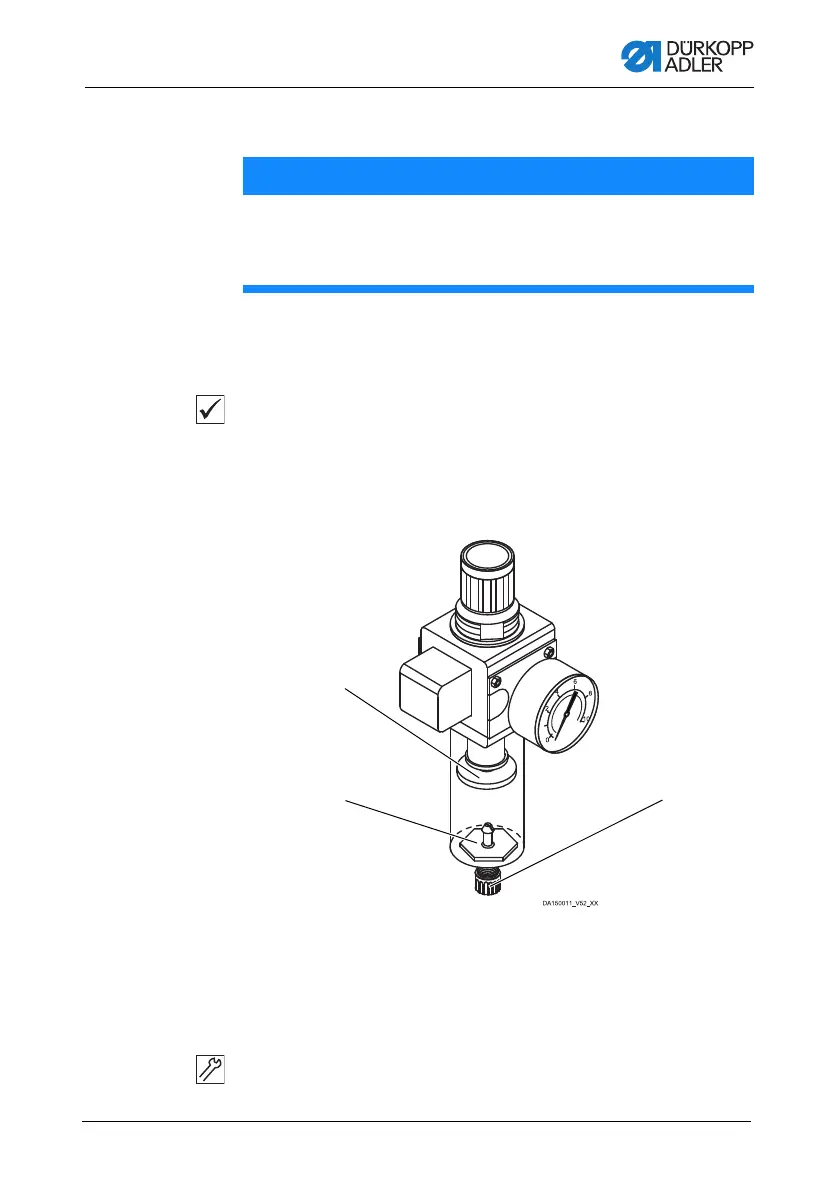

Fig. 32: Draining the water condensation
To drain water condensation:
1. Disconnect the machine from the compressed air supply.
2. Place the collection tray under the drain screw (3).
NOTICE
Property damage from excess water!
Excess water can cause damage to the machine.
Drain water as required.
(1) - Filter element
(2) - Water separator
(3) - Drain screw
