Setup
Operating Instructions 1767 - 00.0 - 12/2016 91
To assemble the control:
1. Screw the control (2) onto the 4 screw holders (3) under the
tabletop.
2. Clamp the power cable of the control (2) into the strain relief
mechanism (1).
3. Screw the strain relief mechanism (1) under the tabletop.
7.10.2 Connecting the control

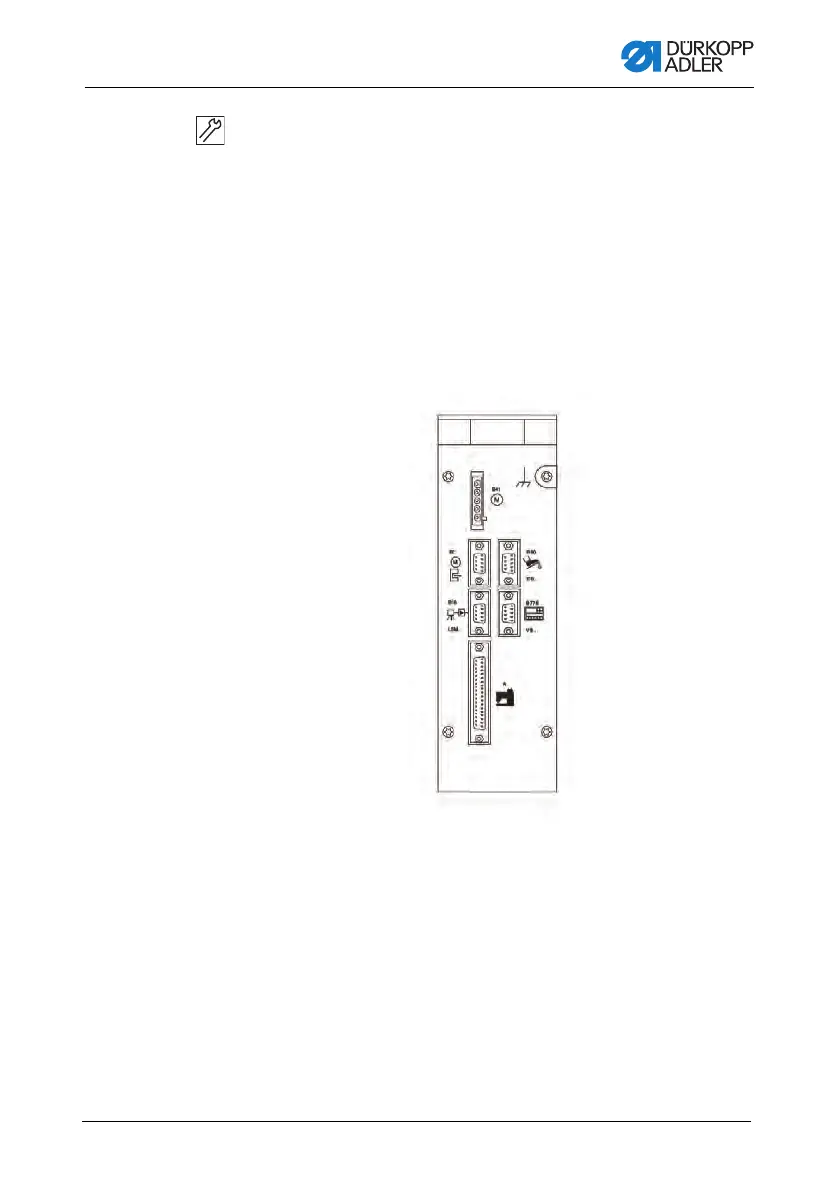

Fig. 46: Connecting the control
Connect the control as follows:
• Insert the plug of each connecting cable into the sockets
on the back of the control.
• Connect the control to the power supply using the power
cable.
Operation of the control is described in the control-specific
instructions:
