Setup
84 Operating Instructions 1767 - 00.0 - 12/2016
To set the working height:
1. Loosen the screws (1) on both sides of the stand bars.
2. Set the tabletop to the desired height.
Important
Pull out or push in the tabletop evenly at both sides to prevent it
from jamming.
3. Tighten the screws (1) on the stand bars.
7.6 Assembling the pedal and setpoint device

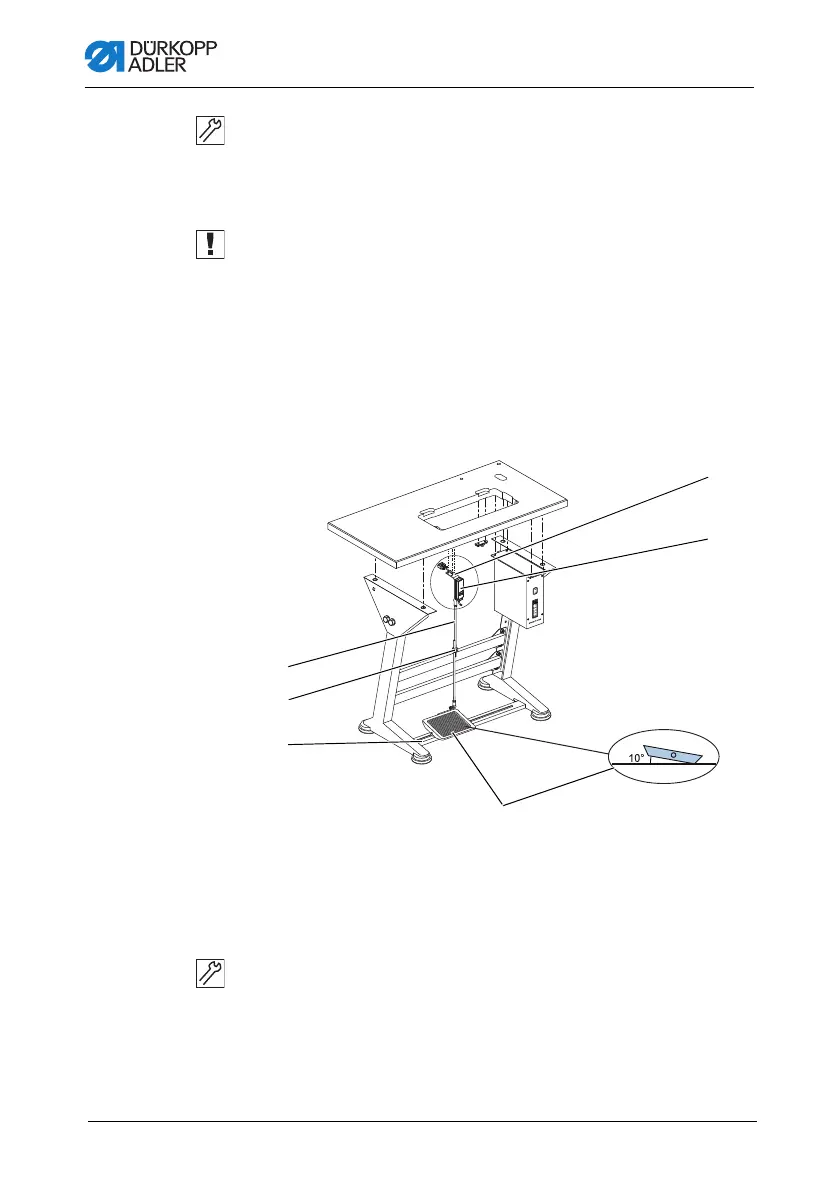

Fig. 38: Assembling the pedal and setpoint device
To assemble pedal and setpoint device:
1. Fit the pedal (4) on the cross strut (3) and align it in such a
way that the middle of the pedal is under the needle. The cross
strut has elongated holes to allow alignment of the pedal.
2. Screw the pedal (4) firmly onto the cross strut (3).
(1) - Pedal rod
(2) - Screw
(3) - Cross strut
(4) - Pedal
(5) - Setpoint device
(6) - Bracket
