7.11.1 Assembling the compressed air maintenance unit

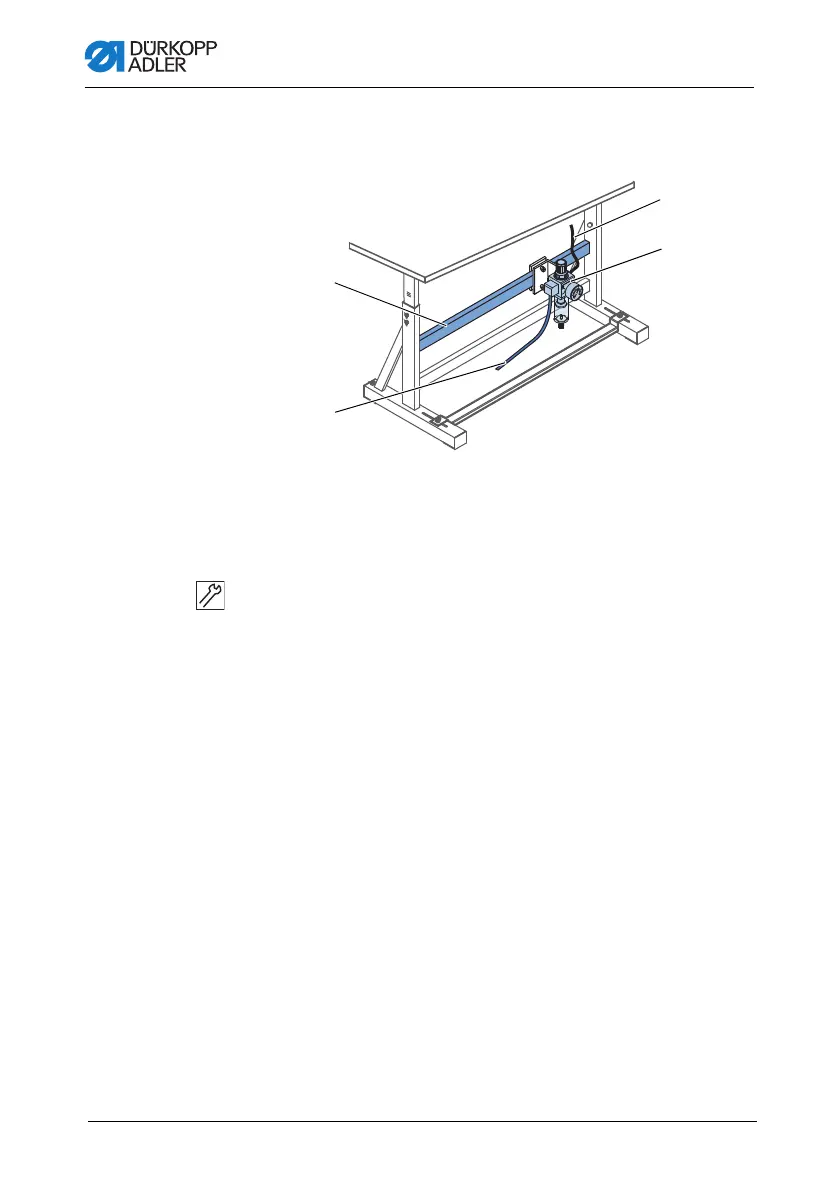

Fig. 48: Assembling the compressed air maintenance unit
To assemble the compressed air maintenance unit:
1. Assemble the maintenance unit (3) to the upper cross bar (1)
of the stand using the bracket, screws and clip.
2. Connect the machine hose (4) coming out of the machine
head to the maintenance unit (3) at the top right.
3. Connect the connection hose (2) to the compressed air supply
using a hose coupling R 1/4”.
(1) - Cross bar
(2) - Connection hose
(3) - Compressed air maintenance unit
(4) - Machine hose
