DURKOPP ADLER 878-M PREMIUM Service Instructions

Working basis
18 Service Instructions 878-M PREMIUM - 03.0 - 10/2019
Removing the valve cover
1. Loosen the screws (2).
2. Remove the valve cover (1).
Placing the valve cover
1. Place the valve cover (1).
2. Tighten the screws (2).
3.4.5 Disassembling and assembling the throat plate

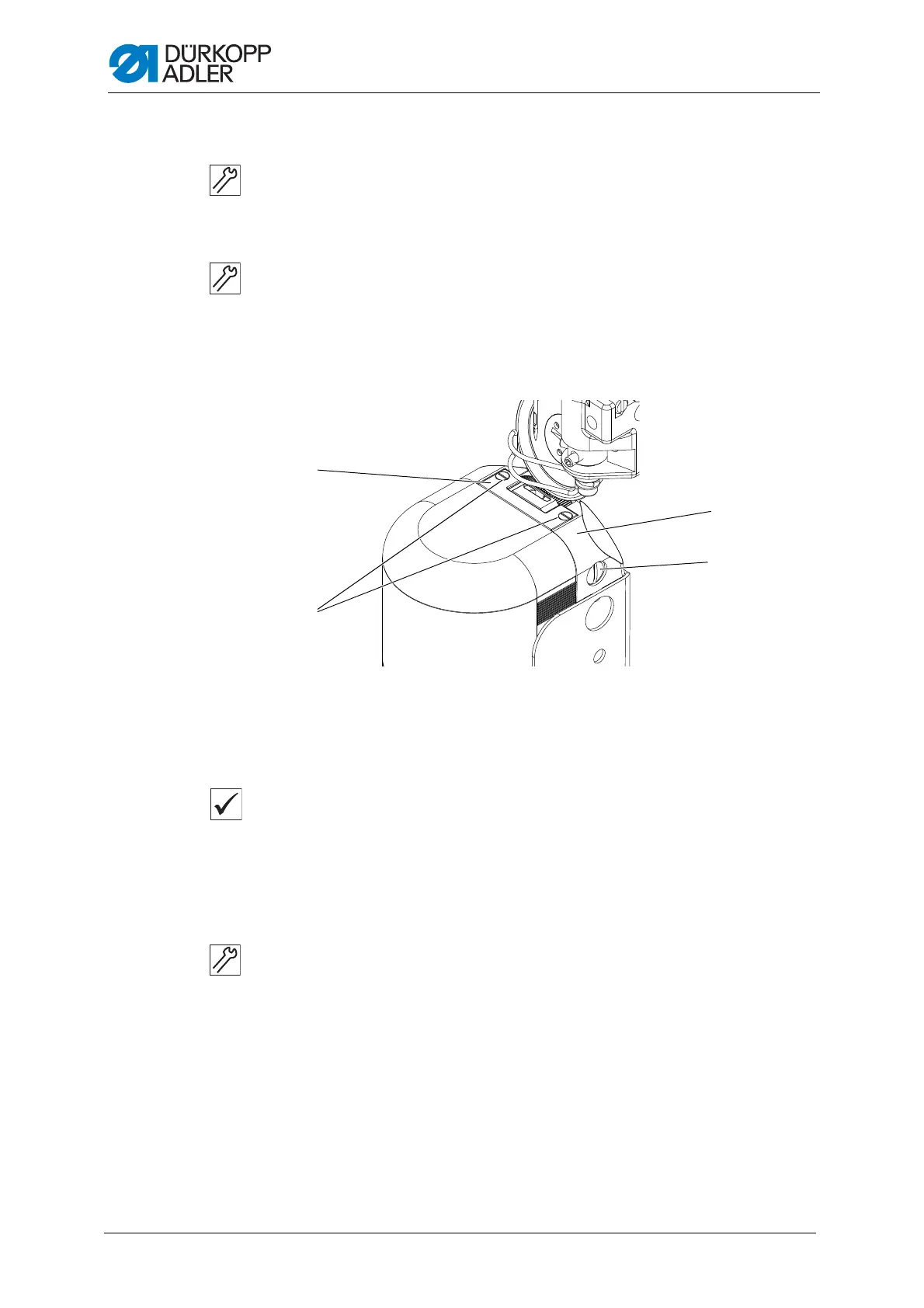

Fig. 6: Disassembling and assembling the throat plate
Proper setting
At the standard setting the throat plate slide should be positioned at the
center of the throat plate.
Disassembling the throat plate and setting the position of the throat
plate slide
1. Loosen the 2 screws (3).
2. Remove the throat plate (4).
3. Loosen the screws (2).
4. Adjust the throat plate slide (1) at the center of the throat plate (4).
5. Tighten the screws (2).
Assembling the throat plate
1. Insert the throat plate (4).
2. Tighten the 2 screws (3).
(1) - Throat plate slide
(2) - Screws
(3) - Screws
(4) - Throat plate
③
②
④
①
