Integrated motor

Service Instructions 878-M PREMIUM - 03.0 - 10/2019 61

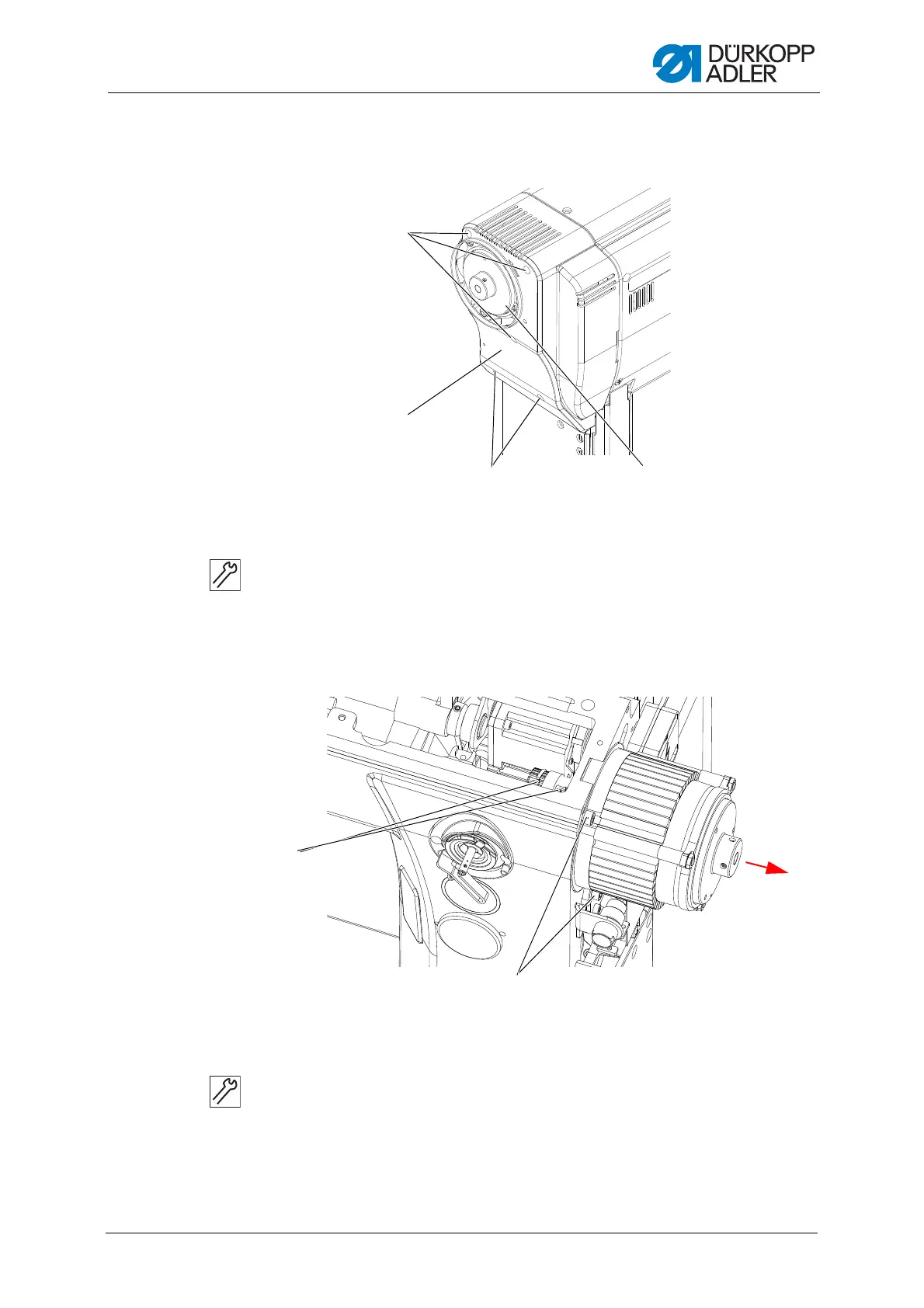

16.1.2 Removing the cover

Fig. 51: Removing the cover

1. Loosen all 5 screws (1).

2. Remove the cover (2) in the direction of the handwheel axis.

16.1.3 Removing the motor

Fig. 52: Removing the motor

3. Loosen the screws (1) and disconnect the cables from the motor.

4. Loosen the 3 screws (2) on the motor flange.

5. Remove the motor from the machine as indicated by the arrow.

(1) - Screws

(2) - Cover

(3) - Washer

①

③

①

②

(1) - Screws (2) - Screws

②

①
