Winder
48 Service Instructions 878-M PREMIUM - 03.0 - 10/2019
13.2 Setting the winder

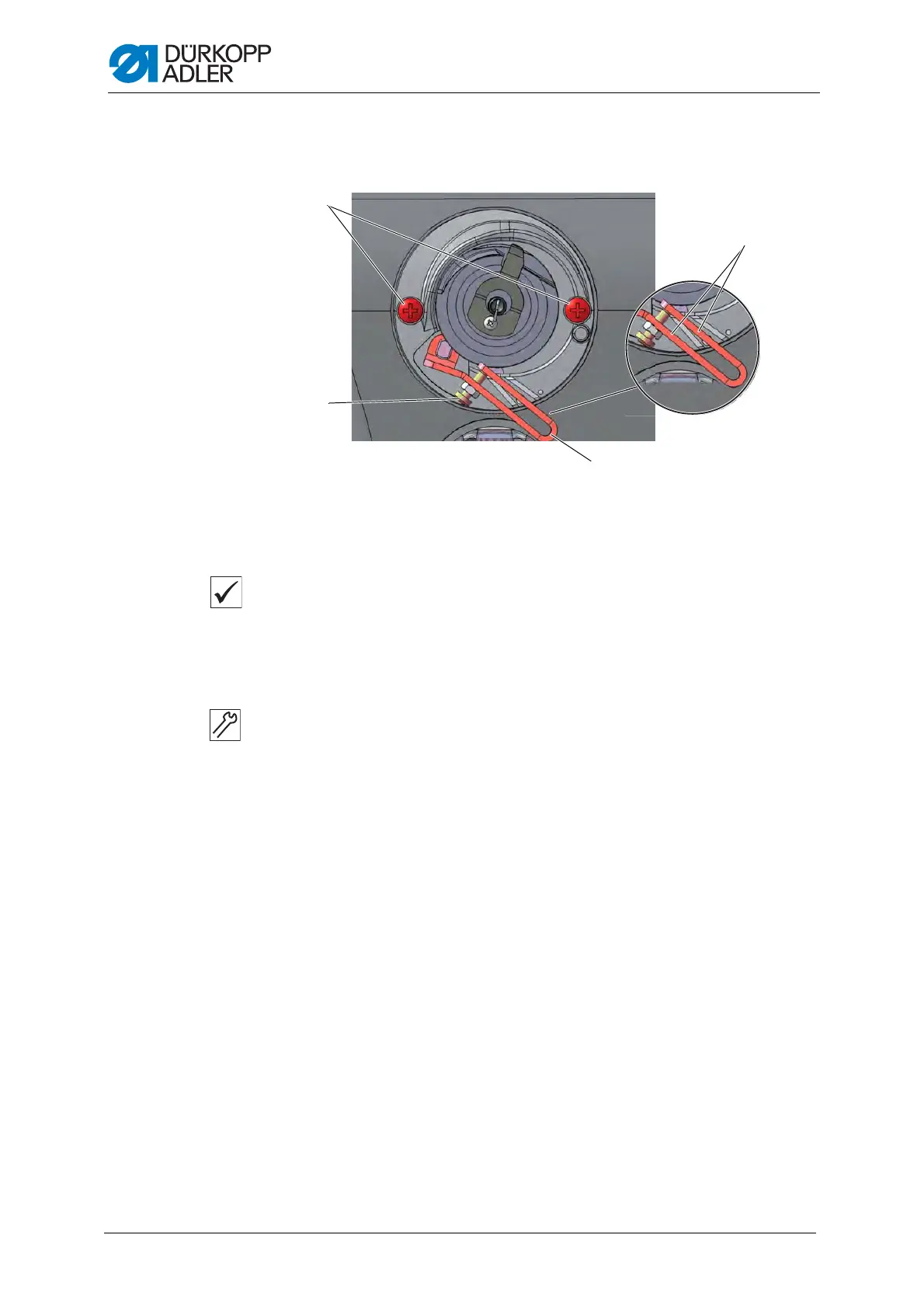

Fig. 37: Setting the winder (1)
Proper setting
The winder wheel runs smoothly and without axial play.
The winding process will stop automatically when the required filling
quantity of the bobbin is reached.
1. Remove the arm cover ( p. 16).
Removing the winder
2. Loosen the screws (1).
3. Remove the winder.
Setting the winder filling quantity
The position of the arms (4) on the winder lever (3) determines the filling
quantity:
Parallel: Automatic winding stops at 0.5 mm below the edge of the
winder
Closer together: Automatic stop with larger filling quantity
Further apart from each other: Automatic stop with smaller filling
quantity
4. Turn the screw (2):
Arms (4) closer together: turn counterclockwise
Arms (4) further apart from each other: turn clockwise
5. Put the completely filled bobbin onto the winder.
6. Fold the winder lever (3) upwards as far as it will go to the thread.
(1) - Screws
(2) - Screw
(3) - Winder lever
(4) - Arm
