Setting the sewing foot
30 Service Instructions 878-M PREMIUM - 03.0 - 10/2019
8 Setting the sewing foot
Proper setting
1. The pressure bar and roller foot holder should be turned so that the
clamping surface of the sewing foot is perpendicular to the longitudinal
axis of the sewing machine.
The gap between the sewing foot and the feed dog is set automatically
depending on the value of the respective parameter.
2. The position in the sewing direction should be adjusted as follows:
• for 1-needle machines (A) = 1.3 to 2.3 mm
• for 2-needle machines (A) = 0 to 2.3 mm
3. The side position of the sewing foot (5) should be such that the bottom
edge of the sewing foot fits the edge of the needle hole.

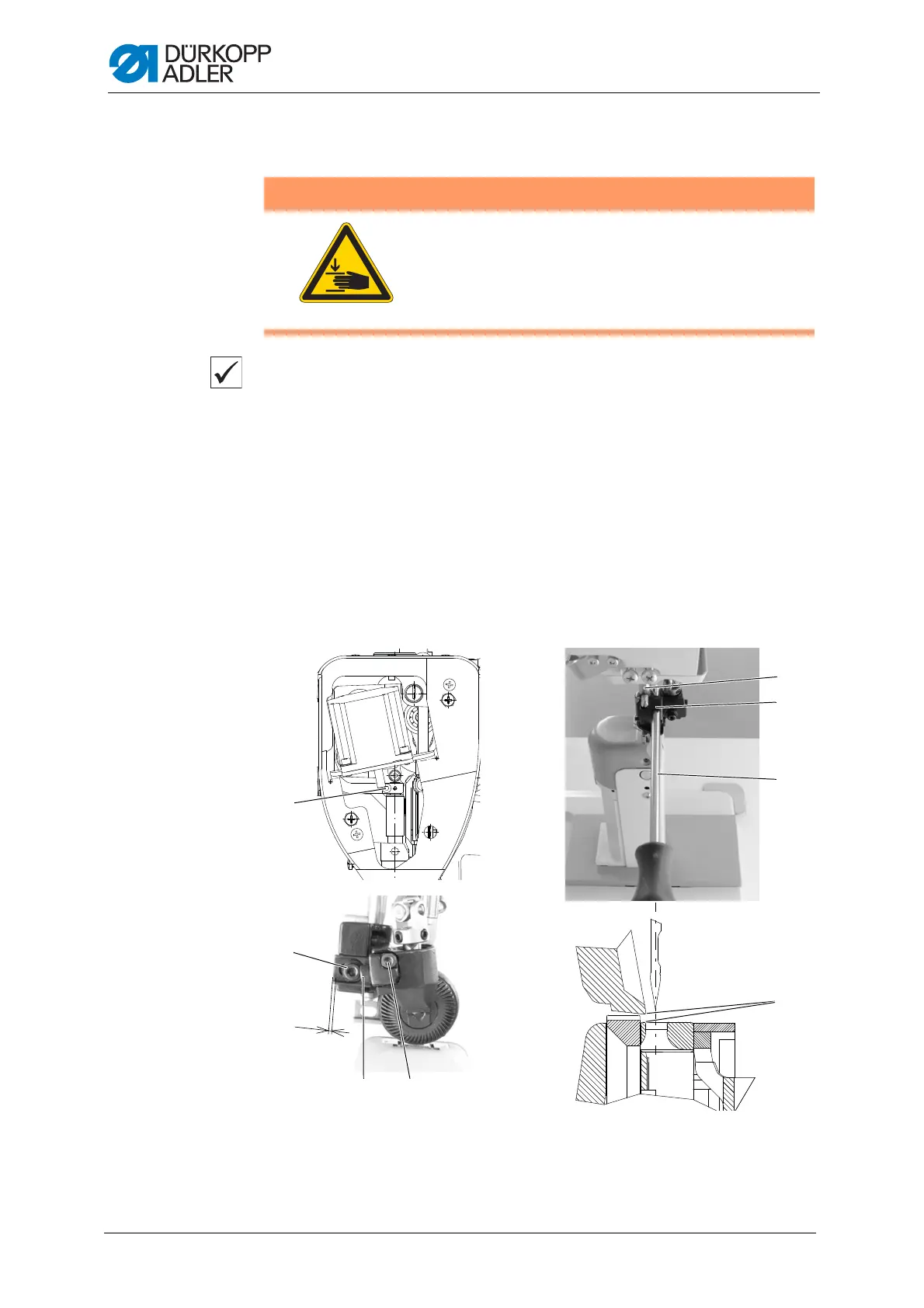

Fig. 19: Setting sewing foot 1
WARNING
Risk of injury from moving parts!
Crushing.
Switch off the sewing machine before setting the
sewing foot.
(1) - Screw
(2) - Screw
(3) - Screw
(4) - Screw
(5) - Side position of the sewing foot
(6) - Cross-point screwdriver
(7) - Roller foot holder
(8) - Needle bar
