Winder
Service Instructions 878-M PREMIUM - 03.0 - 10/2019 47
13 Winder
13.1 Setting the winder wheel to the toothed belt wheel

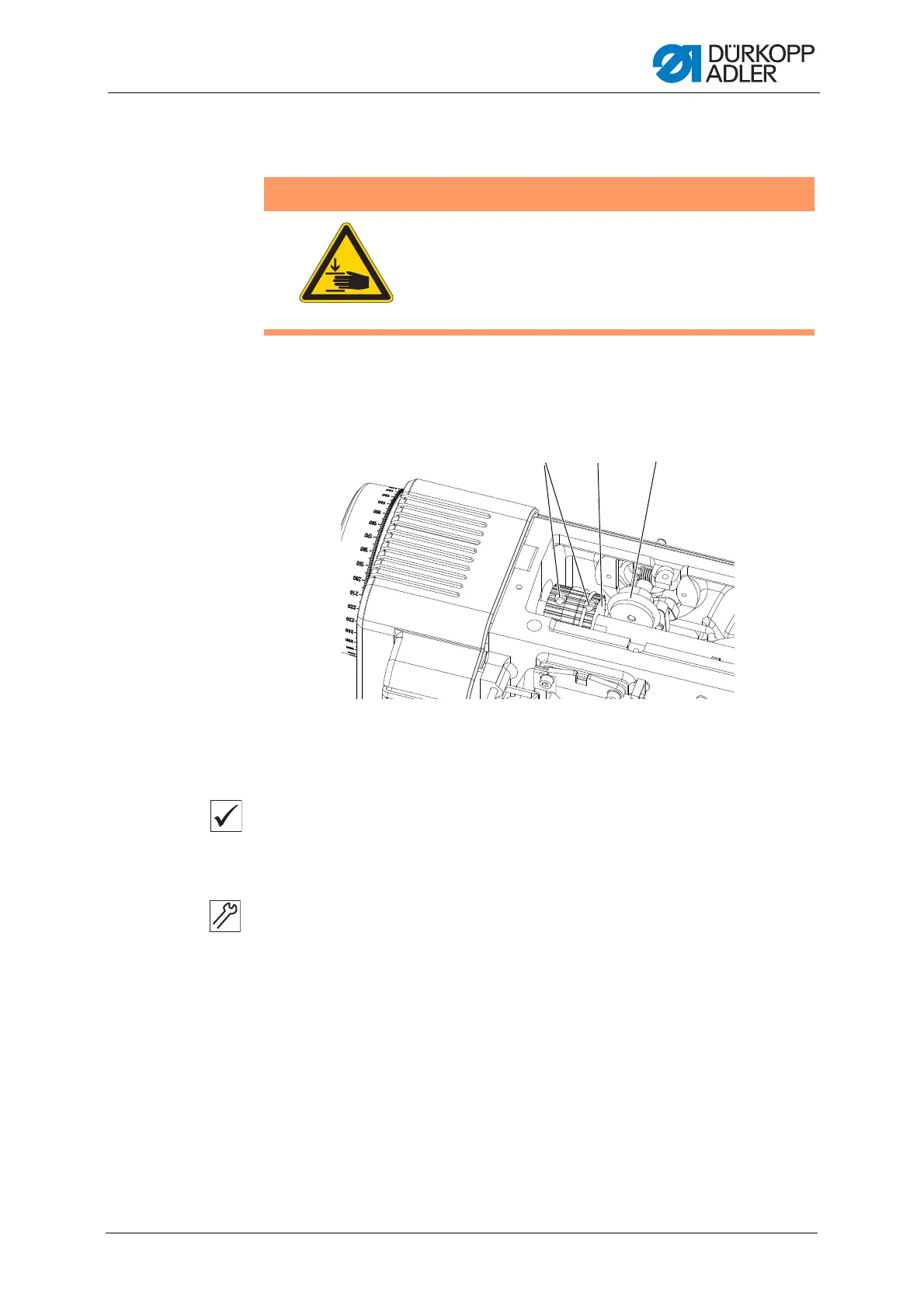

Fig. 36: Setting the winder wheel to the toothed belt wheel
Proper setting
The distance between the winder wheel and the toothed belt wheel side is
0.8 mm.
1. Remove the arm cover ( p. 16).
1. Loosen the threaded pins (1).
2. Move the toothed belt wheel (2) to the right or left so that the distance
from the winder wheel (3) is exactly 0.8 mm.
3. Tighten the threaded pins (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before setting the winder.
(1) - Threaded pins
(2) - Toothed belt wheel
(3) - Winder wheel
