DURKOPP ADLER 878-M PREMIUM Service Instructions

Integrated motor
60 Service Instructions 878-M PREMIUM - 03.0 - 10/2019
16 Integrated motor
16.1 Disassembling the motor
16.1.1 Disassembling the handwheel and handwheel flange

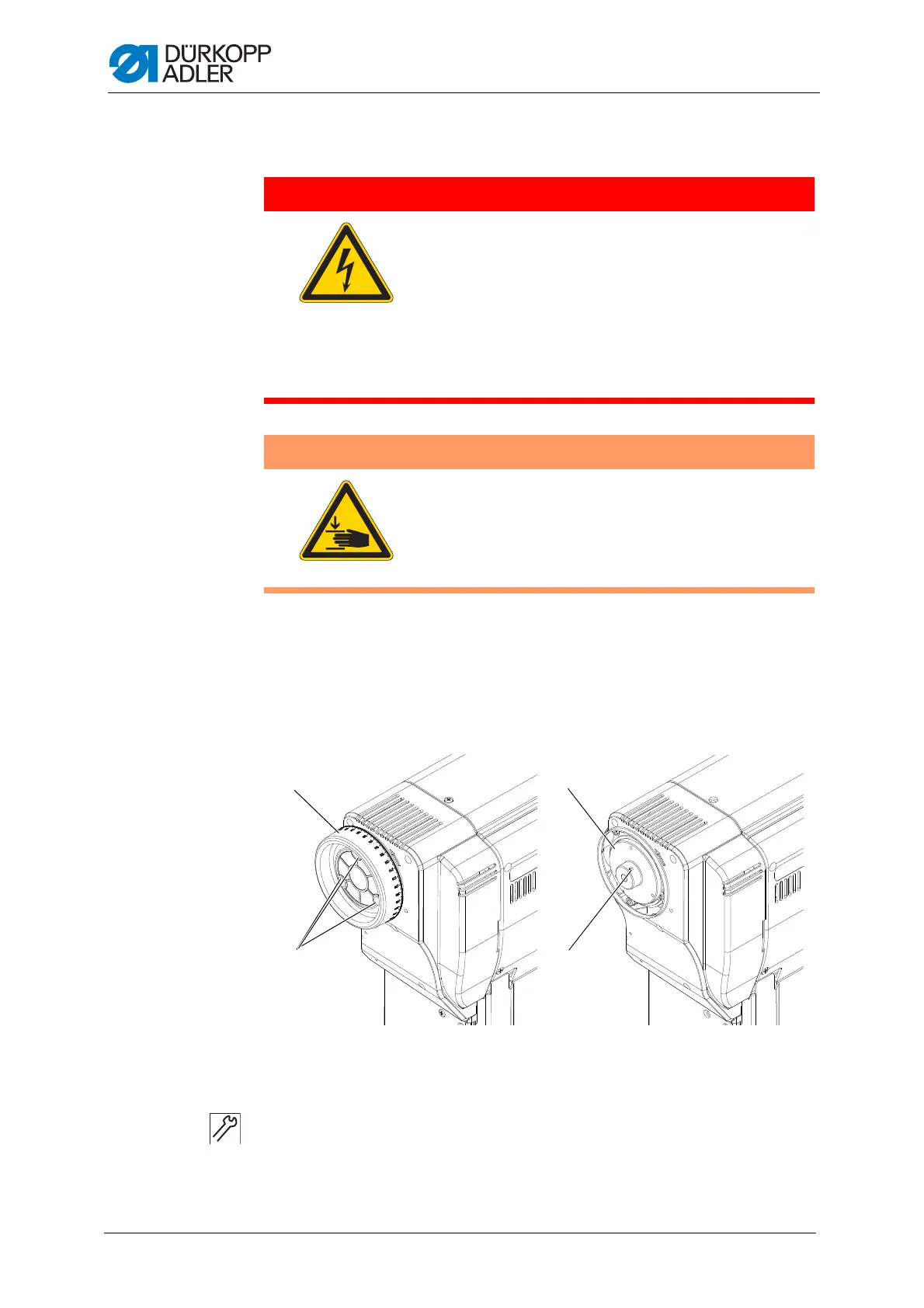

Fig. 50: Disassembling the handwheel and handwheel flange
1. Loosen all three screws (2) on the handwheel (1).
2. Loosen all threaded pins (3) and remove the handwheel flange (4).
DANGER
Risk of injury from electricity!
Unprotected contact with electricity can result in
serious injuries or death.
Work on the electrical system must ONLY be carried
out by qualified electricians or appropriately trained
and authorized personnel.
ALWAYS pull the power plug before working on the
electrical equipment.
WARNING
Risk of injury from moving parts!
Crushing possible.
The machine may only be disassembled and
assembled by trained specialists.
(1) - Handwheel
(2) - Screws
(3) - Threaded pins
(4) - Washer
①
②
④
③
