Programming
94 Service Instructions 878-M PREMIUM - 03.0 - 10/2019

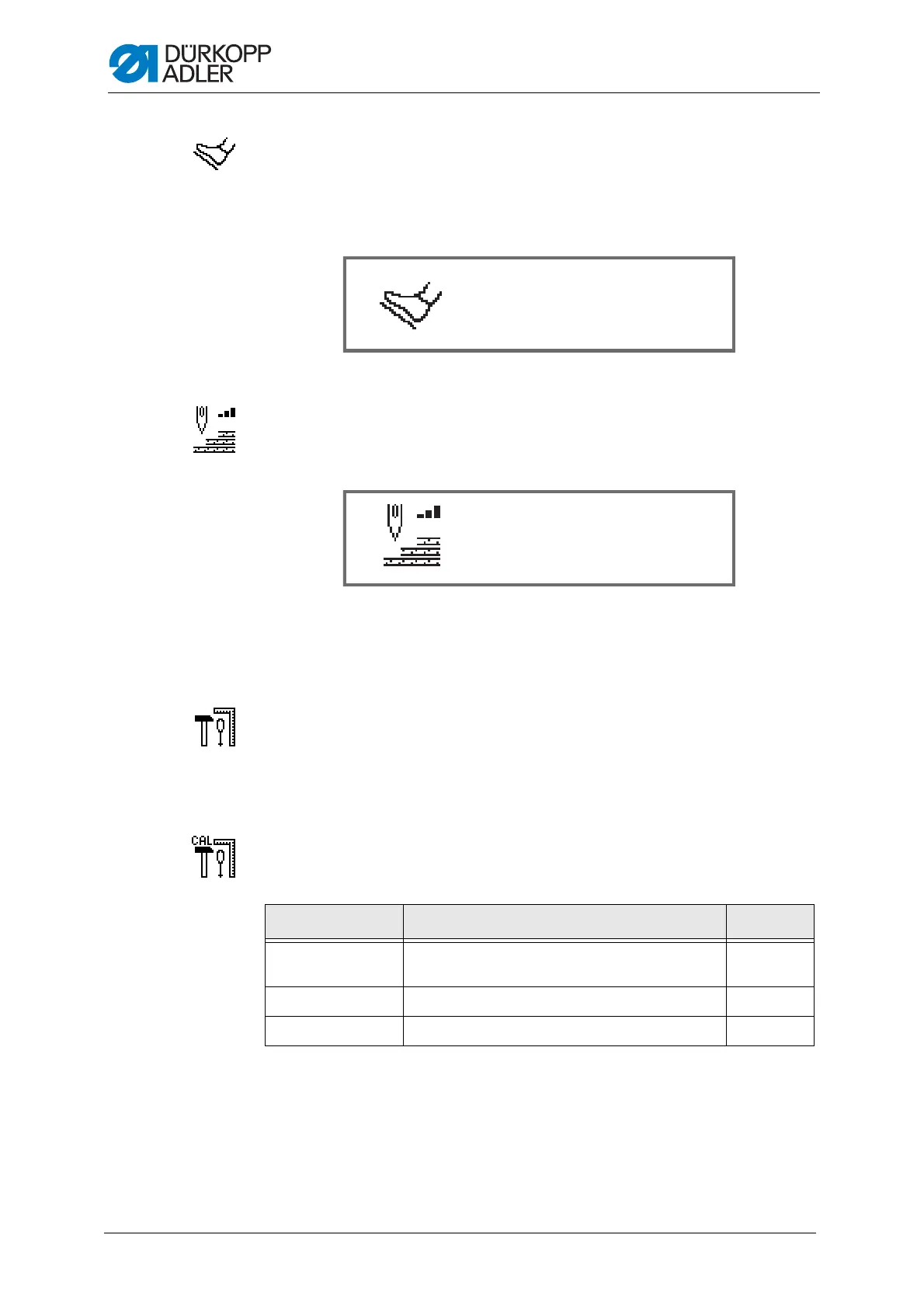

Test Pedal subitem
This subitem is used to check the various pedal positions of the analog
pedal (X6b). The positions are indicated by measured and automatically
calculated calibration values.
Fig. 65: Test Pedal subitem
TestFabricSen. (Test of the material thickness detection) subitem
Use this subitem to test the functionality of the material thickness detection.
Fig. 66: TestFabricSen. (Test of the material thickness detection) subitem
17.7.2 Setting the Service routine (Adjustments) parameter
The Adjustments parameter is not explained in greater detail here,
because it is closely related the area of mechanics. Details on this area
can be found in the Service routine chapter.
17.7.3 Setting the Calibration (Calibration) parameter
Various parameters need to be calibrated – they are explained in more
detail in the table. A detailed description of the calibration is given after the
table.
Digital :
Analog :
0
278
0:
Max:
-1:
-2:328
175
275
918
Tens :
FLPos:
20
0.0 Stroke:
Pressu:
Speed :
2.5
3
0
Menu item Explanation Reference
Man.St.Len. Calibration of the stitch adjustment lever (optional
equipment)
 p. 95
EdgeGuide Calibration of the edge guide (optional equipment)  p. 95
Pedal Calibration of the pedal  p. 95
