Setting the needle bar

Service Instructions 878-M PREMIUM - 03.0 - 10/2019 27

7 Setting the needle bar

Order

First, check the following setting:

• A straight and undamaged needle has been inserted ( Operating

Instructions)

Proper setting

The needle pierces the exact center of the needle hole.

7.1 Aligning the needle bar linkage sideways

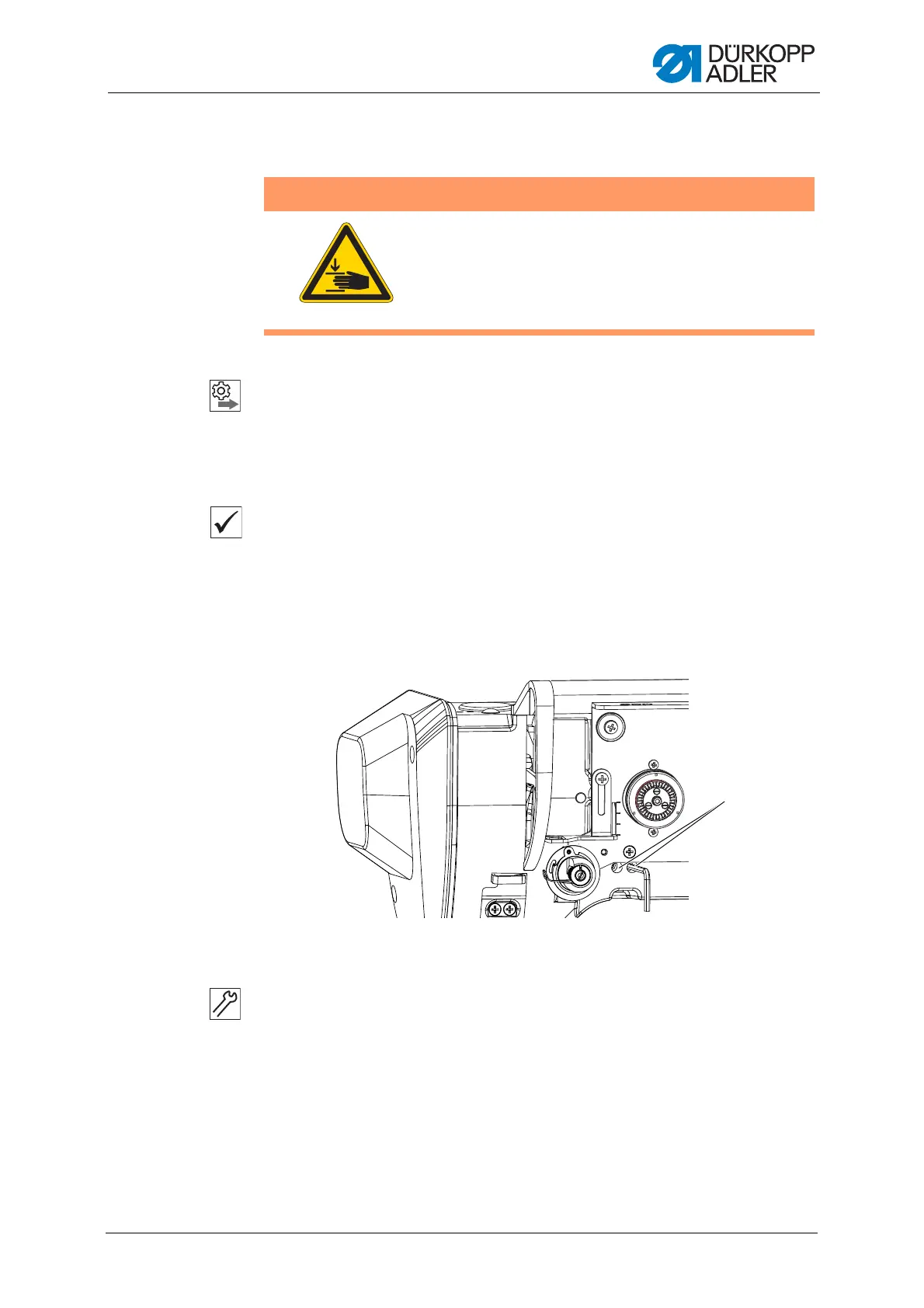

Fig. 16: Aligning the needle bar linkage sideways (1)

1. Remove the arm cover ( p. 16).

2. Remove the push buttons.

3. Loosen the two threaded pins (1).

WARNING

Risk of injury from moving parts!

Crushing possible.

Before setting the needle bar, switch the sewing

machine off.

(1) - Threaded pins
