Winder
Service Instructions 878-M PREMIUM - 03.0 - 10/2019 49
Setting the winder spacing

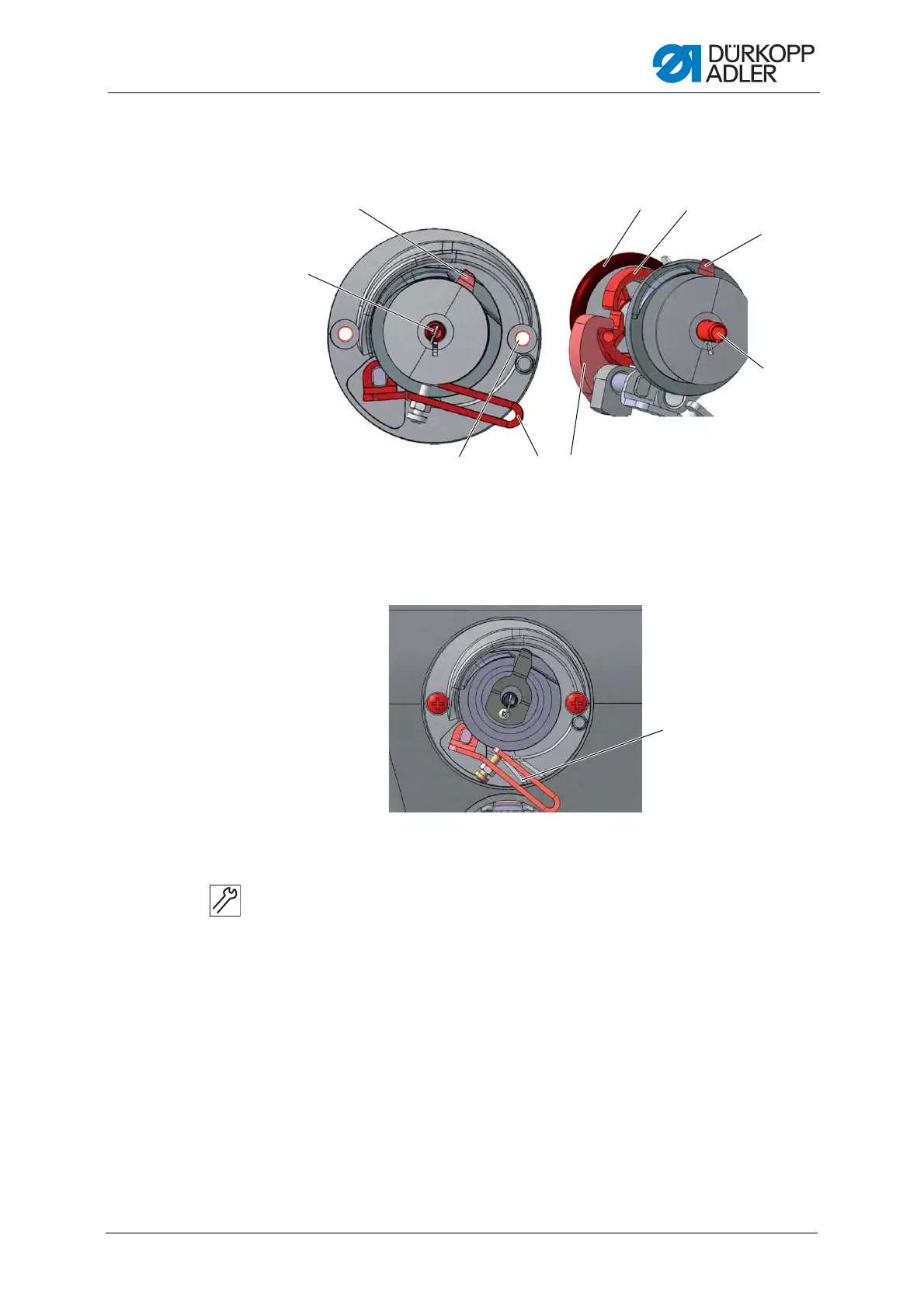

Fig. 38: Setting the winder (2)
Fig. 39: Setting the winder (3)
7. Turn the winder spindle (6) such that the thread-pulling knife (5) is at
the top right and is facing the right-hand screw hole (7).
8. Loosen the threaded pin in the block (8).
9. Set the winder lever (3) such that the upper arm is above the marking,
e.g. for the XXL hook (11).
The distance between the winder lever and the outer thread on the
bobbin is 2 – 3 mm.
10. Set the block (8) such that it is resting against the locking disk (9).
11. Set the block (8) such that its distance to the winder wheel (10) is 0.5 mm.
12. Tighten the threaded pin in the block (8).
(3) - Winder lever
(5) - Thread-pulling knife
(6) - Winder spindle
(7) - Right-hand screw hole
(8) - Block
(9) - Locking disk
(10) - Winder wheel
(11) - Marking for XXL hook
