Winder
50 Service Instructions 878-M PREMIUM - 03.0 - 10/2019
Setting the winder run

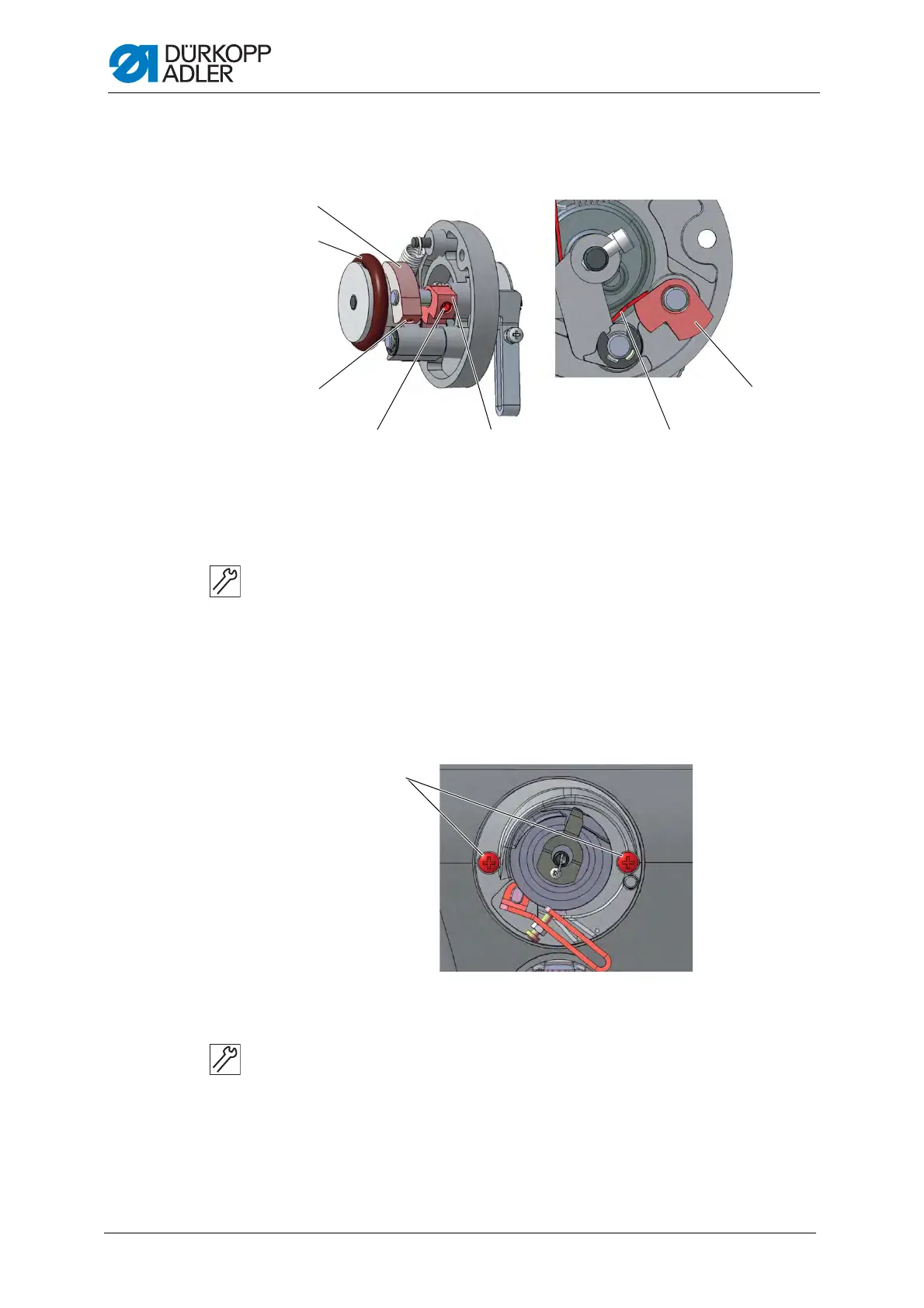

Fig. 40: Setting the winder (4)
13. Loosen the threaded pin (13).
14. Set the switch cam (14) such that it rests against the leaf spring (15)
when the block (8) has engaged in the locking disk.
15. Set the switch cam (14) such that the winder lever (3) has no axial play.
16. Tighten the threaded pin (13).
Installing the winder
Fig. 41: Setting the winder (5)
17. Place the winder on the machine arm.
18. Tighten the screws (1).
(8) - Block
(10) - Winder wheel
(12) - Threaded pin
(13) - Threaded pin
(14) - Switch cam
(15) - Leaf spring
(1) - Screws
