9.1 Drum extension
9.1.1 Preliminary remarks and safety notes
Prerequisites for attaching and removing the drum extension:
n Adequate space for attaching or removing
n The machine is on level, firm ground
n If necessary, a second person is present to help lift the drum
extension
9.1.2 Removing the drum extension
Consider the weight of the drum extensions:
Approx. 28 kg (62 lbs) each
Protective equipment:
n
Working clothes
n
Safety shoes
n
Protective gloves
1.
Park the machine safely
Ä Chapter 6.5 „Parking the machine
in secured condition“ on page 90.
2. Unscrew the fastening bolts (1).
3. Remove the washers.
4. Remove the drum extension (2).
5. To protect the threads, remount the fastening bolts (1) and
washers; tightening torque: 572 Nm (422 ft·lbf).

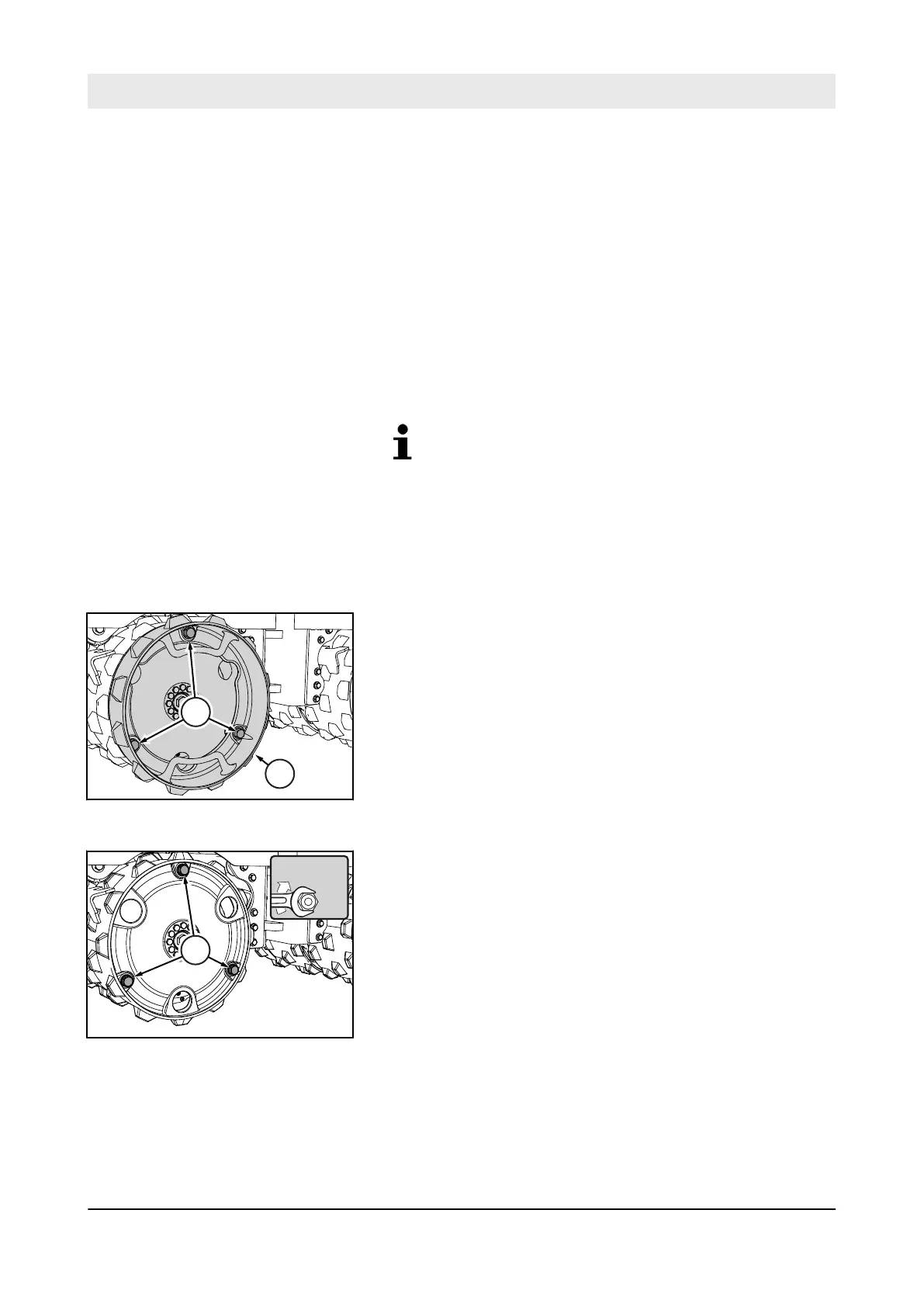

B-720-0032
2
1
Fig. 181
B-720-0031
1
572 Nm
Fig. 182
