4.2 Display module
h
2
3
4
1
B-720-0035

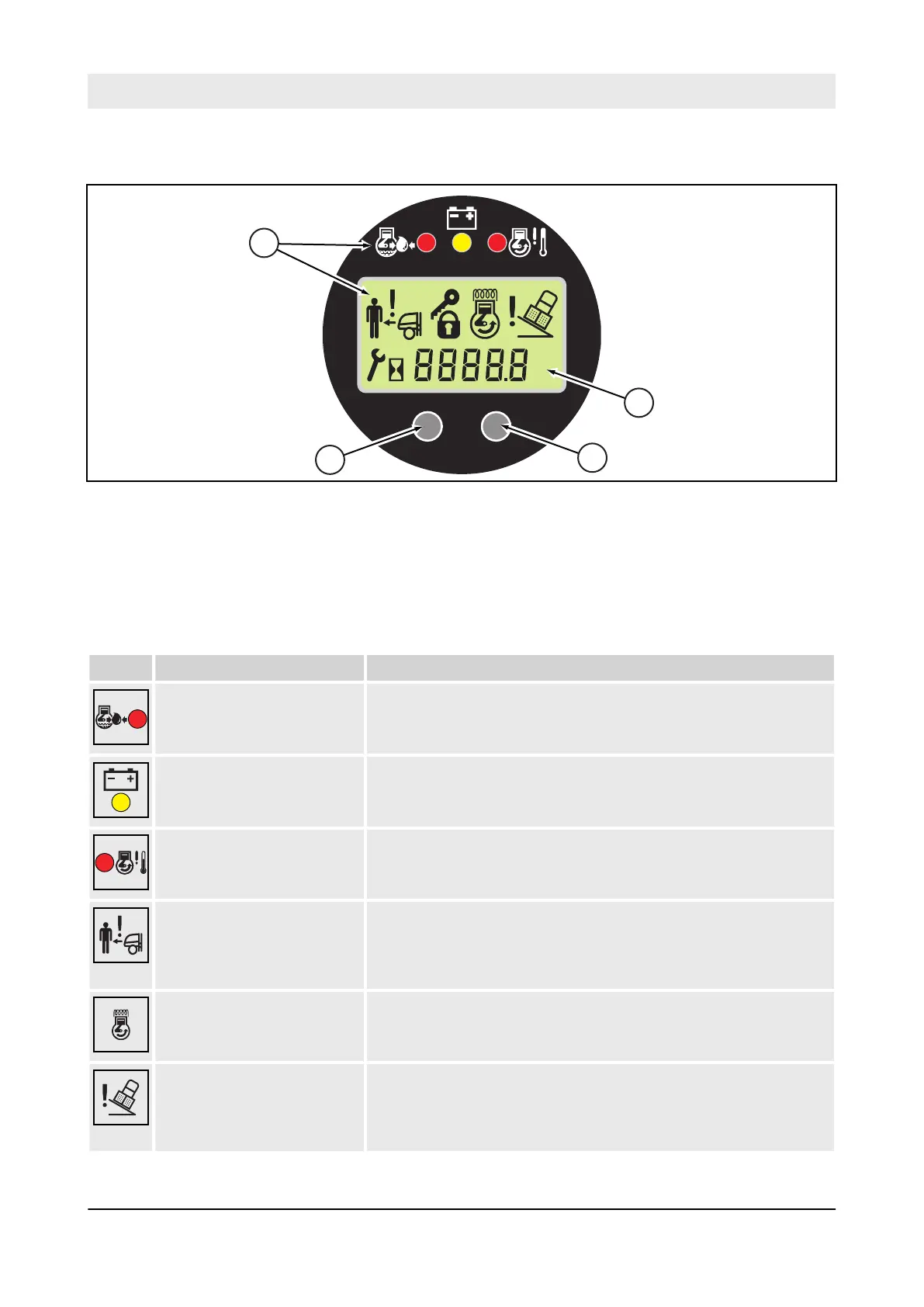

Fig. 31
1 Control and warning lights
2 Display field for operating hours and fault codes
3 Function key F2
4 Function key F1
Designation Note
Engine oil pressure warning
light
Lights up if the engine oil pressure is too low. The engine is shut
down after a short while.
Check the engine oil level; if necessary, repair the engine.
Charge control light Lights up if the battery is not being charged.
Check the V-belt drive, if necessary repair the generator.
Coolant temperature
warning light
Lights up if the coolant temperature is too high.
Run the engine at idle speed or, if necessary, shut it down and
clean the radiator; if necessary, repair the engine.
Safety device warning light Lights up when the operator with the remote control is within the
safety field. The machine stops immediately.
To continue leave the machine’s safety field or move the machine
in the opposite direction.
Pre-heating control light Lights up during pre-heating.
Tipping angle warning light Lights when the tipping angle of the machine has reached 45° in
lateral direction or 60° in travel direction. The engine is shut down.
To continue restart the engine and move the machine carefully out
of the danger zone.
