8.2 Preparations/concluding work
Certain maintenance tasks require preparations and concluding
activities.
This includes e.g. opening and closing maintenance flaps and
maintenance doors as well as securing certain components.
After this work close all maintenance flaps and doors again and
return all components to their operating condition.

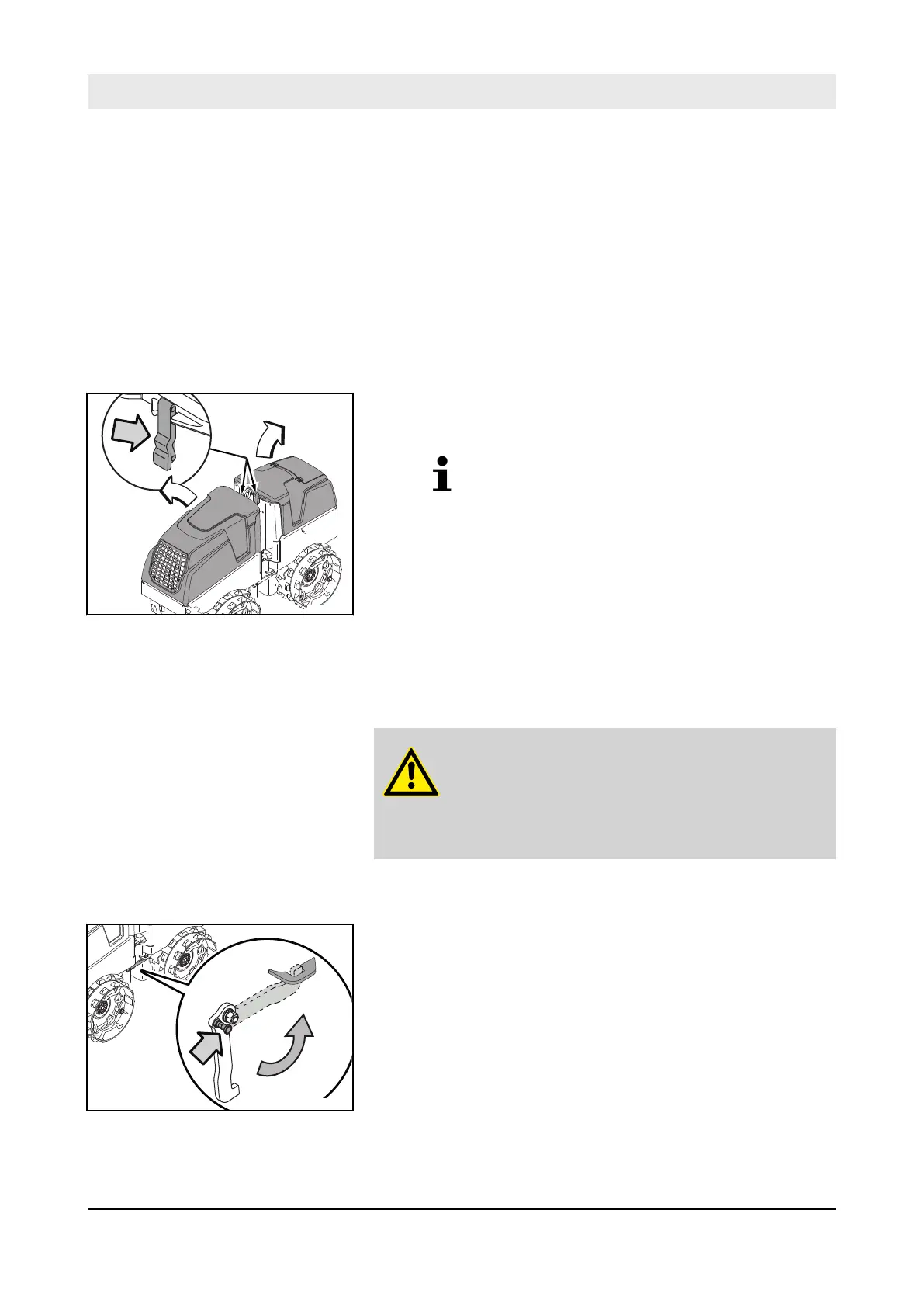

8.2.1 Opening the protection hoods
1. Open the locks and fold the protective hoods forwards or
backwards.
The protective hoods are secured against
unintentional tipping over by a safety strap
and cannot be completely folded open.
8.2.2 Engaging/releasing the articulation lock
8.2.2.1 Engaging the articulation lock
WARNING!
Danger of crushing by the articulating
machine!
– Do not step into the articulation area of the
machine while the engine is running.
1. Move the steering to middle position and stop the machine.
2. Switch off the engine and remove the ignition key.
3. Remove the locking bolt and swivel the articulation lock into
the eyelet.
4. Let the locking bolt click into place.
B-720-0079
Fig. 124
B-720-0080
Fig. 125
