Morpheus Operation Manual8
CONNECTIONS
bypass the internal effects section. The Sub 2 outputs are fed from the
effects section. If a stereo plug is inserted, the Ring of the stereo plug
serves as a signal Return which sums into the Main outputs.
Therefore, the Sub 1 and Sub 2 jacks can serve as effect sends and
returns in order to further process selected instruments and then
return them to the main mix.

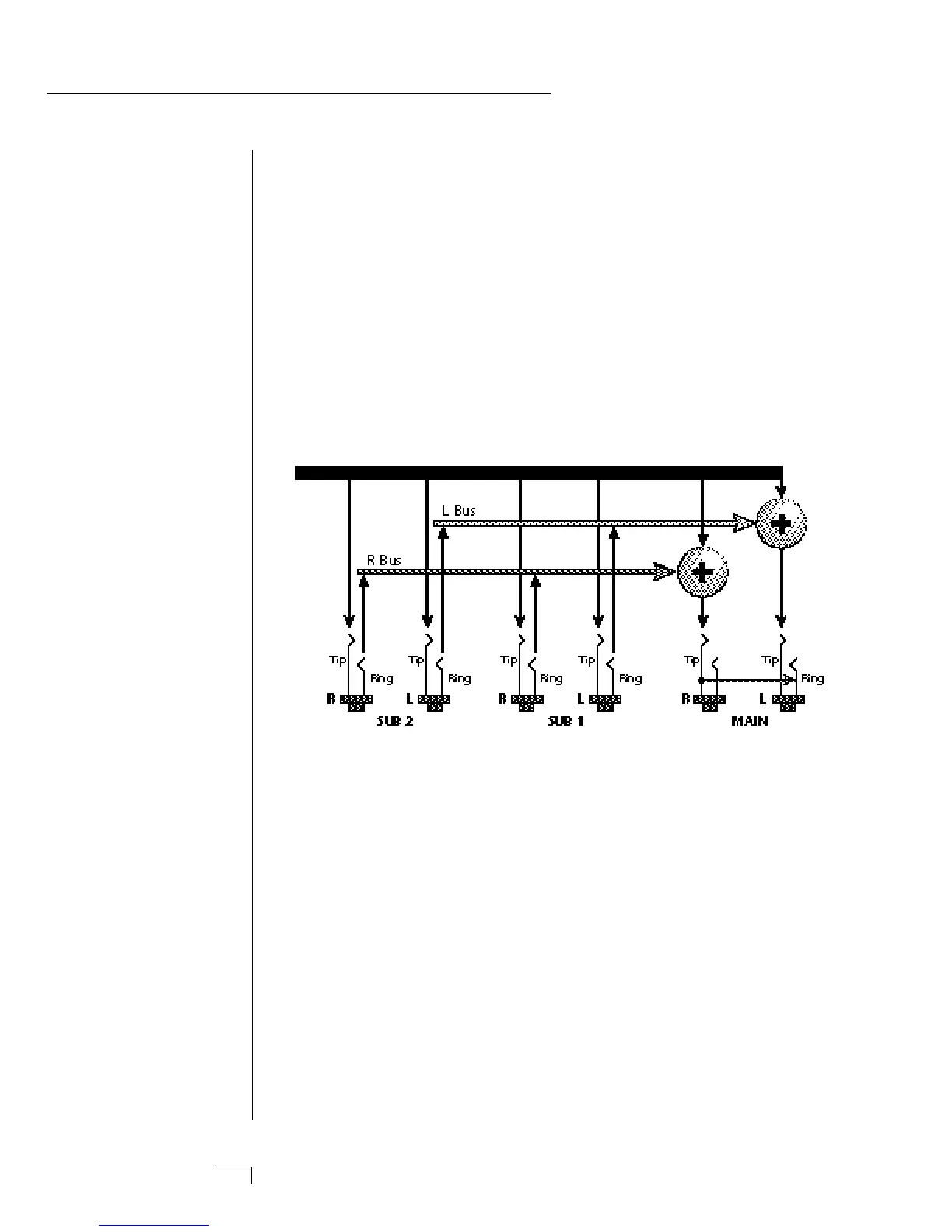

The diagram shows the Sub 1 and Sub 2 jacks being used as send/
returns in order to further process selected Morpheus presets without
using the effects bus on the mixing board. In a pinch, the effect re-
turns could also be used to sum additional instruments into the main
outputs.
POWER UP!
The power switch is located on the right side of the front panel.
Morpheus and its MIDI controller may be turned on in any order.
When power is applied, the liquid crystal display will light, indicating
that Morpheus is operating. You may have noticed that there is no
110/220 Volt power selector switch on Morpheus.
Morpheus automatically switches itself for 110 or 220 Volt
operation.
