5.14. PSU
The system supports 4 kinds of power module.
AC power (Air direction : Front to back; red color panel)
AC power (Air direction : Back to front; blue color panel)
DC Power (Air direction : Front to back; red color panel)
DC input Power (Air direction : Front to back; blue color panel)
Those are for difference application; the fan direction is front to back or back to front, the AC/DC
Power or DC/DC power.
The AC/DC and DC/DC power are only different between power input; the output voltage SPEC is the
same. The AC/DC power is 90~240Vac input, and DC/DC power is 36~72Vdc input. The power supply
can support load sharing function.

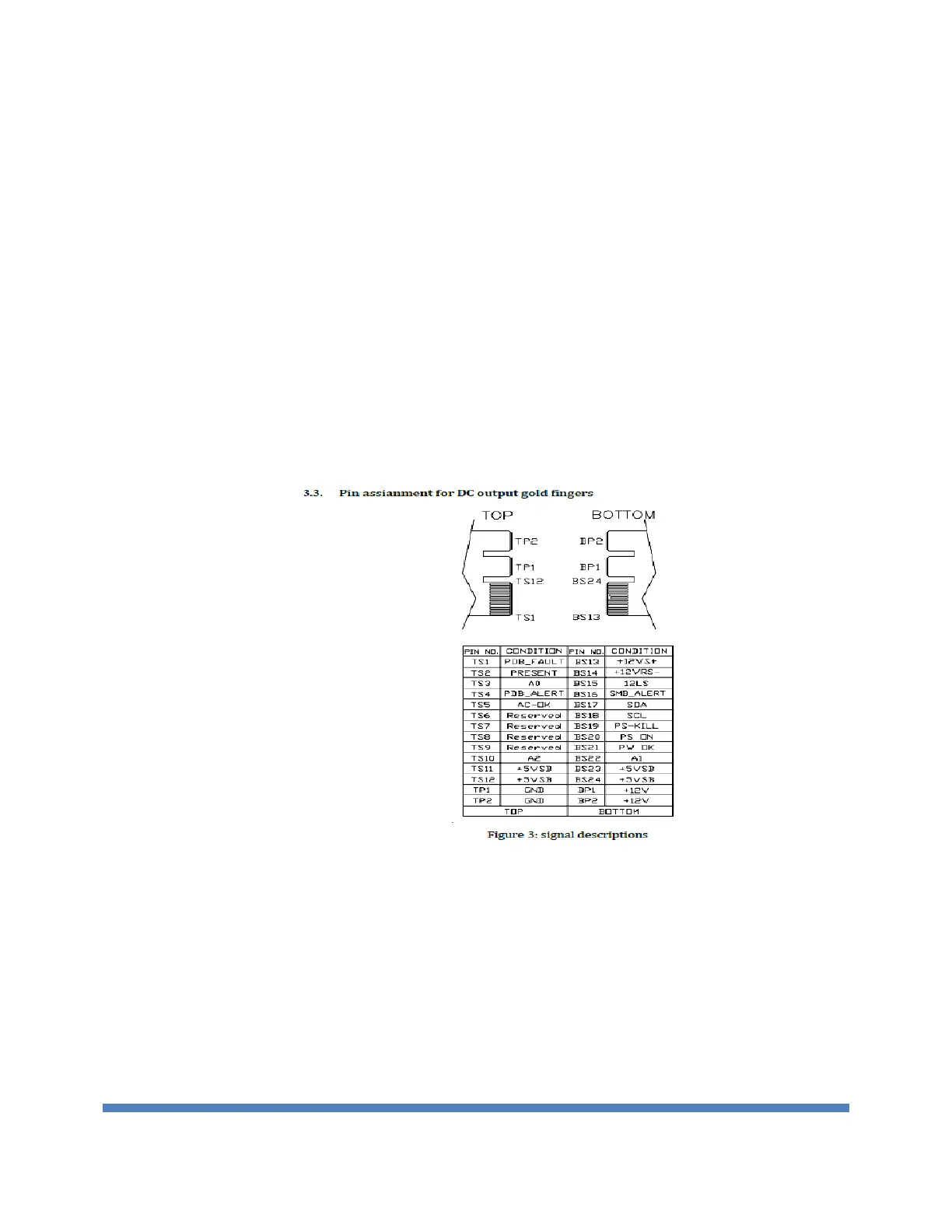

5.14.1. Pinout
The power module output pin define is as below.
Figure 52 PSU Pinout
5.14.2. Dimension
Nominal Dimensions
Height: 40mm (fits in 1U rack in vertical installation);
Width: 50.5mm
