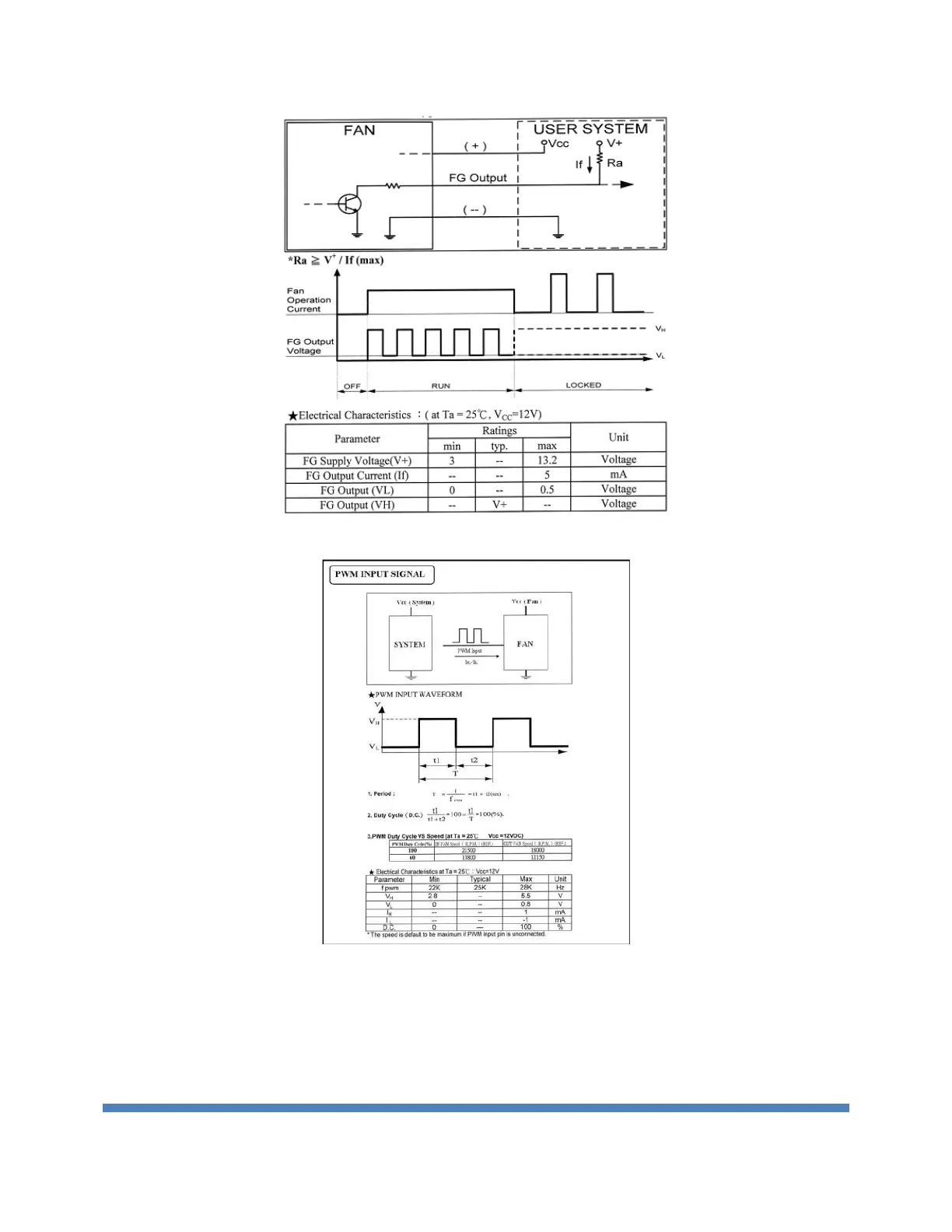

Figure 50 Fan PWM

The system only can provide 3.3V PWM signal. The min of Vh of fan need be low than 3.3V.

5.12. CPLD

AS7326-56X has three CPLD devices for decoding, Fan module status, reset system,

power module status and System interrupt.

I2C address info:

*CPLD1:0x60

*CPLD2:0x62
