Edge-Core AS7326-56X Programming Guide

EDGECORE NETWORKS CORPORATION 2018
41
IR3584 (PMBUS-Loop1)
0x26
IR3584 (PMBus-Loop2)
0x28
IR3570 (I2C)
0x4
IR3570
(PMBus Loop1)
0x42
PCA9548
0X77
For main board
3.9. SATA
The CPU board supports 2 SATA SSD devices via SATA 3.0 interface.
SATA 3.0 CH0 support mSATA SSD module.
SATA 3.0 CH1 support m.2 SSD module.
The following table shows the mSATA and m.2 SSD module dimension and size.
Table 10 SATA SSD Module Table
Type
Dimension
Capacity
mSATA SSD
50.8mm x 29.85mm x 4.0mm
16GB~512GB (option)
M.2 SSD
42.0mm × 22.0mm × 3.5mm
32GB~256GB (default)
80.0mm x 22.0mm
32GB~512GB (option)

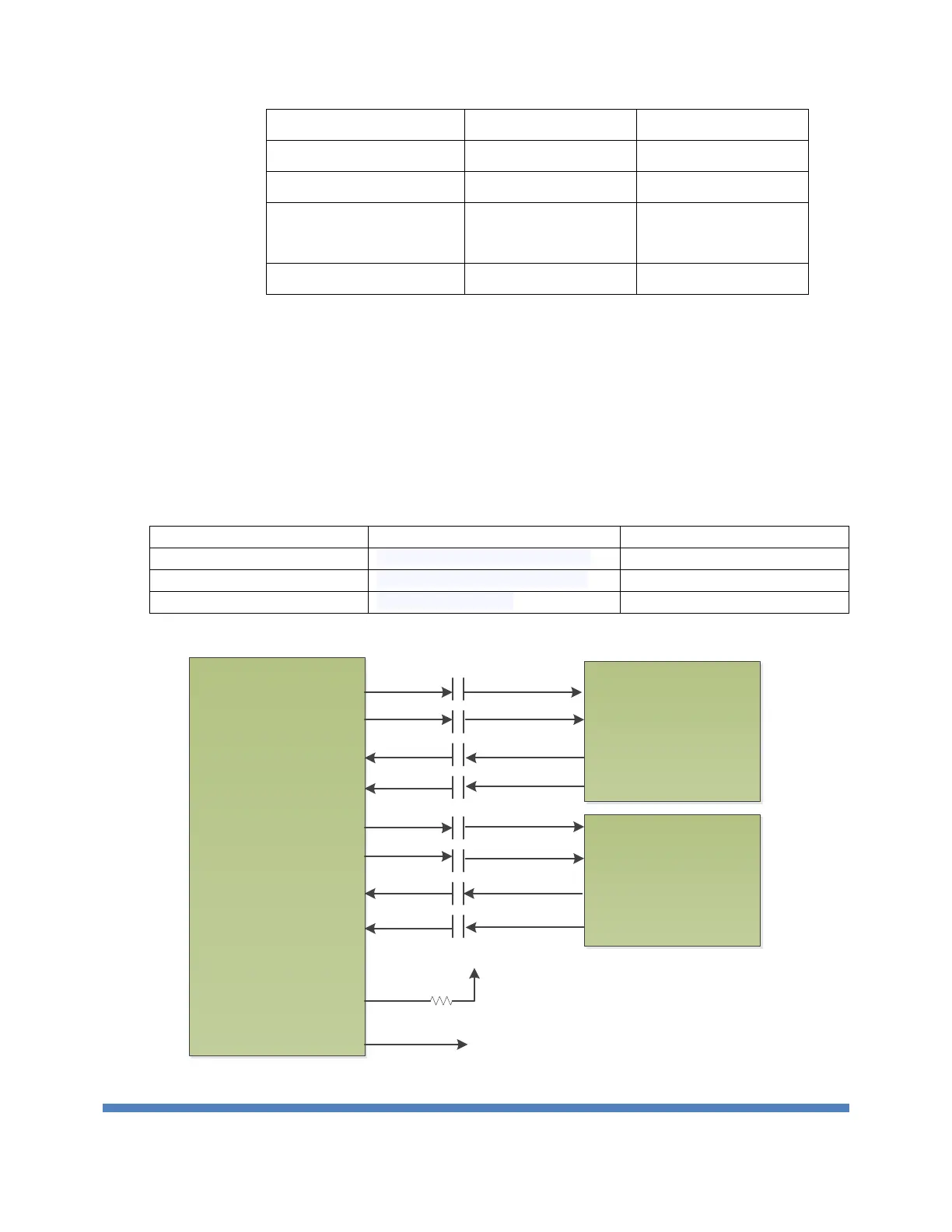

Figure 20 SATA Connection
mSATA
M.2 connector
SATA_RCOMP
7.5K
1.5V
SATA_IREF
1.5V
SATA_TX_DP0
SATA_TX_DN0
SATA_RX_DP0
SATA_RX_DN0
SATA_RX_DP1
SATA_RX_DN1
SATA_TX_DP1
SATA_TX_DN1
