Edge-Core AS7326-56X - Leds of Power Supply Units

EDGECORE NETWORKS CORPORATION 2018
181
Iinput
Input Current
Pinput
Input Power
Voutput_main
Output Voltage main output
Ioutput_main
Output Current main output
Poutput_main
Output Power main output
Voutput_aux
Output Voltage auxiliary output
Ioutput_aux
Output Current auxiliary output
Poutput_aux
Output Power auxiliary output
Tcomp(TBD)
Component Temperature
Tenv
Environmental Temperature
RPMFan
Fan Speed reading
PDBfail
PDB fail protection
5.14.7. LEDs of Power Supply units

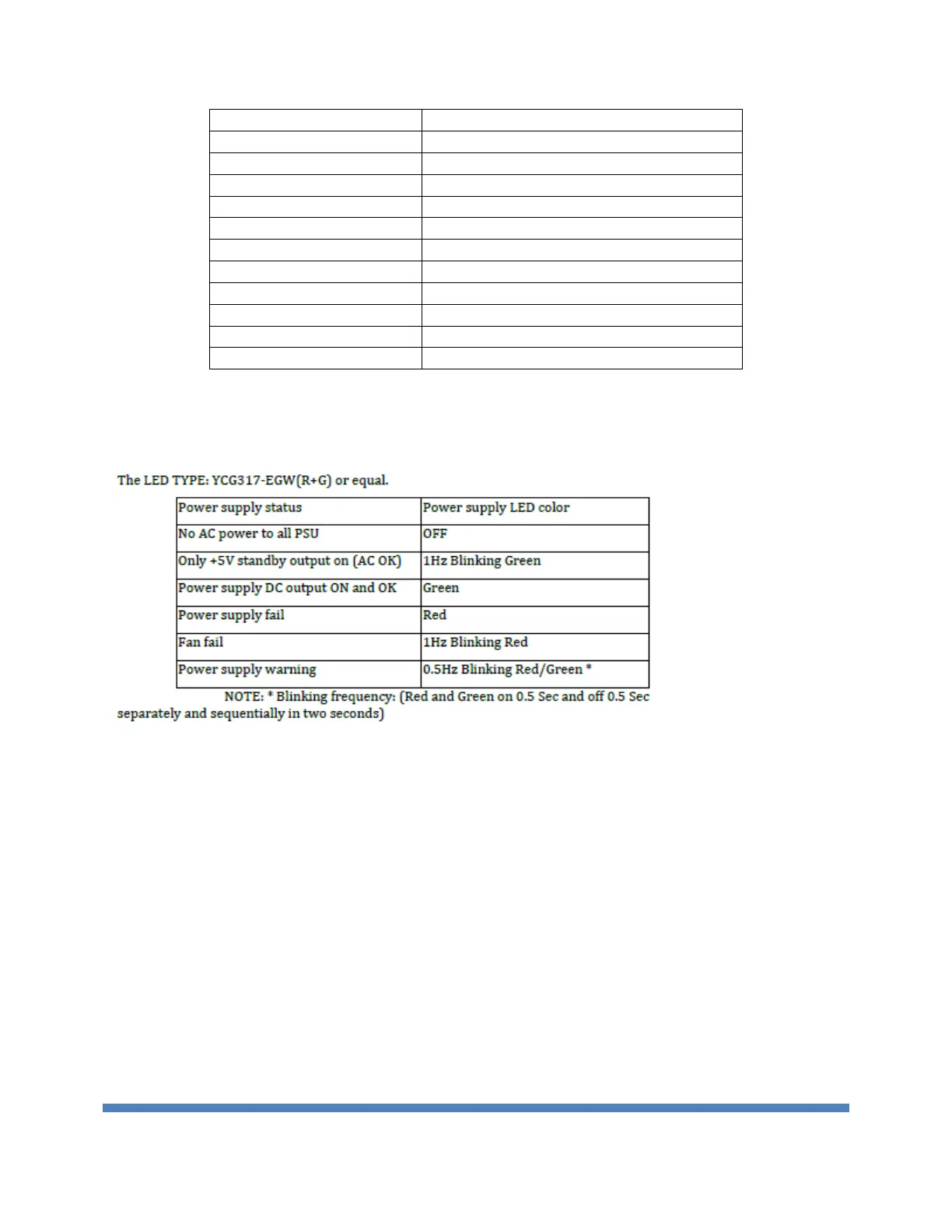

The power supply has Green/ Red led to show the power supply status.
Figure 57 PSU LEDs of Power Supply units
