Edge-Core AS7326-56X Programming Guide

EDGECORE NETWORKS CORPORATION 2018
25

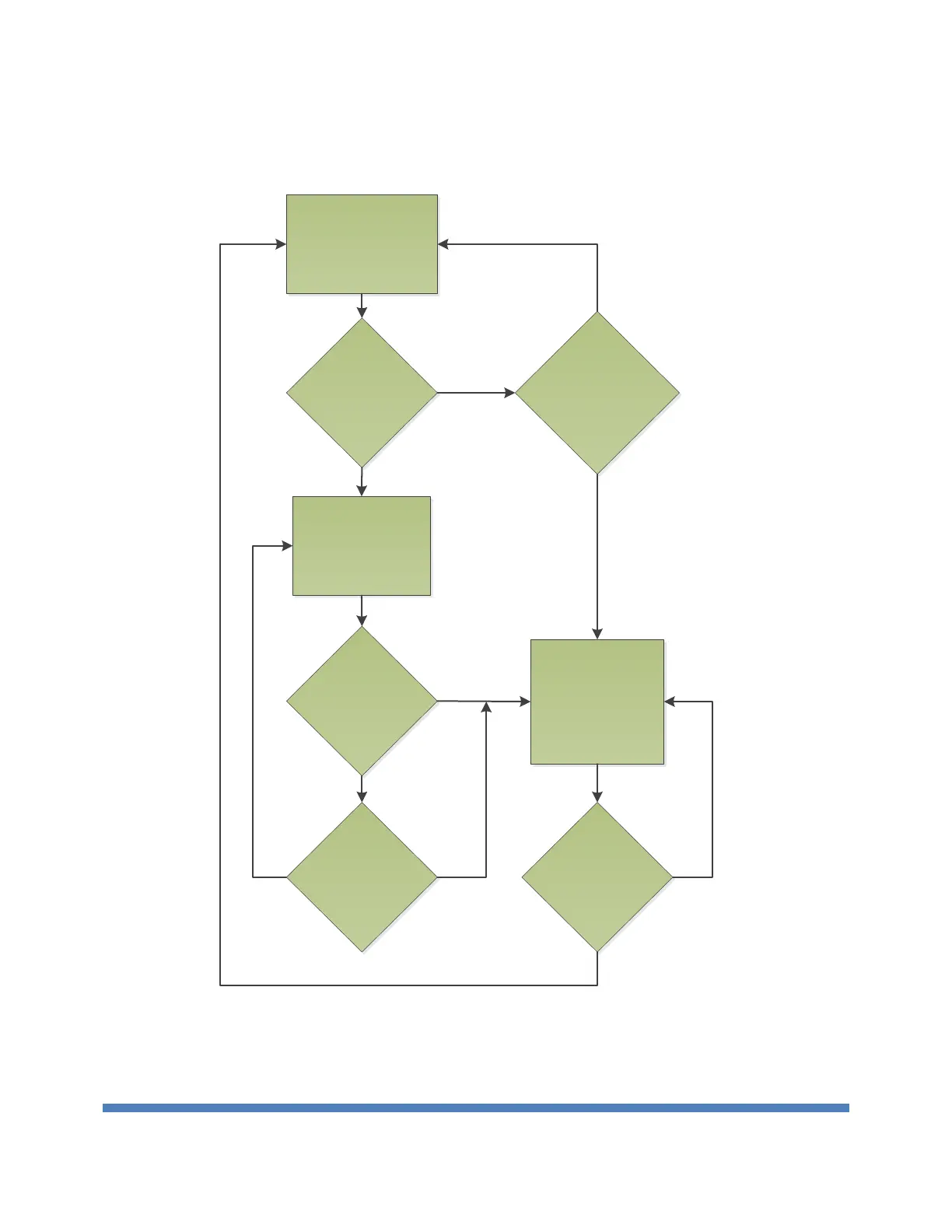

Figure 15 power sequence flow chat
State S5
PF_painc =0
G3_panic =0
Led1=0
Led2=1
PCH_SYS_PWORK=
=1
State S0
PF_painc =0
G3_panic =0
Led1=1
Led2=1
S0_flag=1
PCH_SYS_PWORK=
=1
PCH_SLP_S3_N==1
State G3
PF_painc =1
G3_panic =1
Holdrails =0
Led1=1
Led2=0
S0_flag=0
Panic_time[8]==1
PCH_SLP_S4_N =1 &
PCH_PWRBTN_N=1
& s0_flag=1
Y
Y
Y
Y
N
N
Y
N
N
Y
