VLAN Configuration
3-139
3
CLI – Enter the following command.
Displaying Current VLANs
The VLAN Current Table shows the current port members of each VLAN and
whether or not the port supports VLAN tagging. Ports assigned to a large VLAN
group that crosses several switches should use VLAN tagging. However, if you just
want to create a small port-based VLAN for one or two switches, you can disable
tagging.
Command Attributes (Web)
• VLAN ID – ID of configured VLAN (1-4093).
• Up Time at Creation – Time this VLAN was created (i.e., System Up Time).
• Status – Shows how this VLAN was added to the switch.
- Dynamic GVRP: Automatically learned via GVRP.
- Permanent: Added as a static entry.
• Egress Ports – Shows all the VLAN port members.
• Untagged Ports – Shows the untagged VLAN port members.
Web – Click VLAN, 802.1Q VLAN, Current Table. Select any ID from the scroll-down
list.

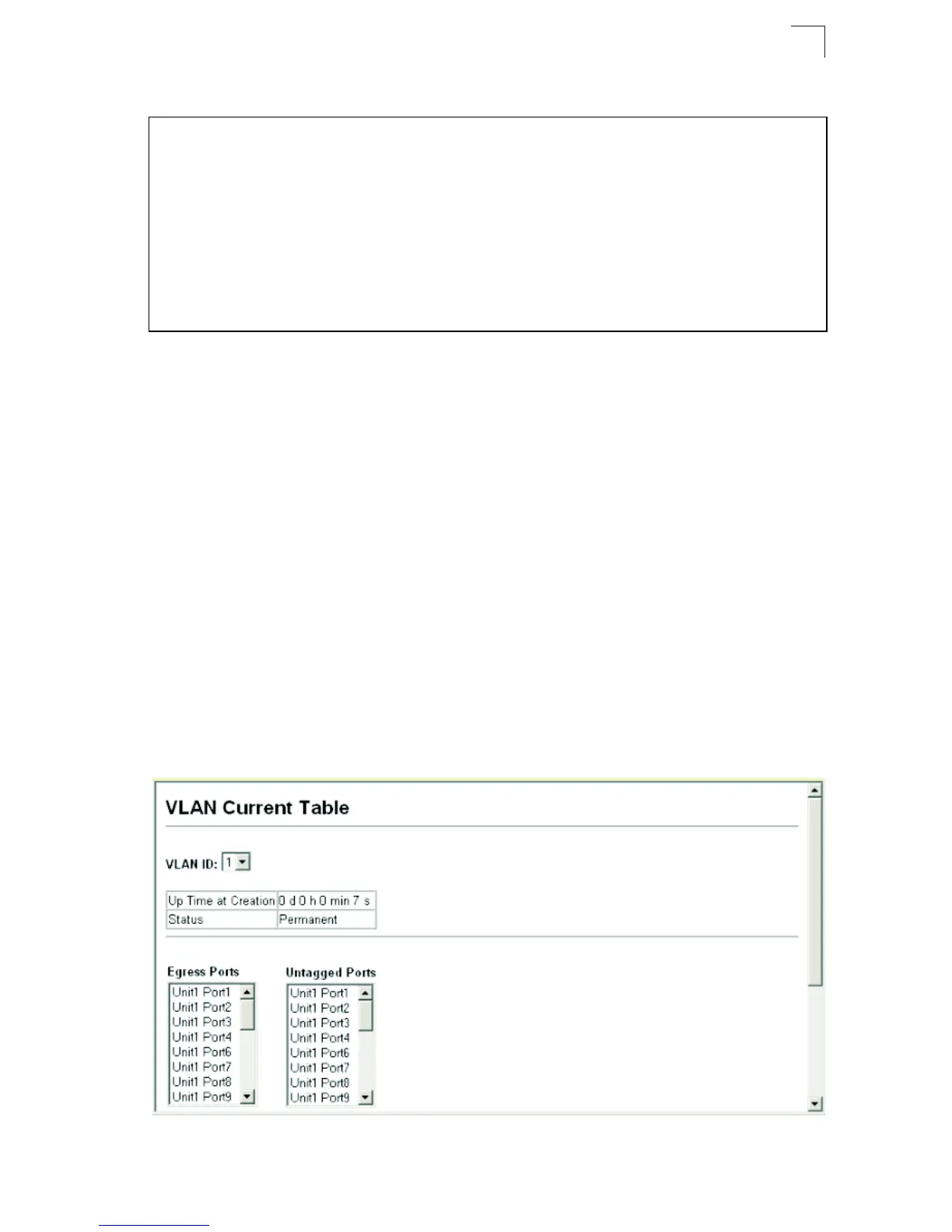

Figure 3-77 VLAN Current Table
Console#show bridge-ext 4-202
Max support VLAN numbers: 256
Max support VLAN ID: 4093
Extended multicast filtering services: No
Static entry individual port: Yes
VLAN learning: IVL
Configurable PVID tagging: Yes
Local VLAN capable: No
Traffic classes: Enabled
Global GVRP status: Disabled
GMRP: Disabled
Console#
